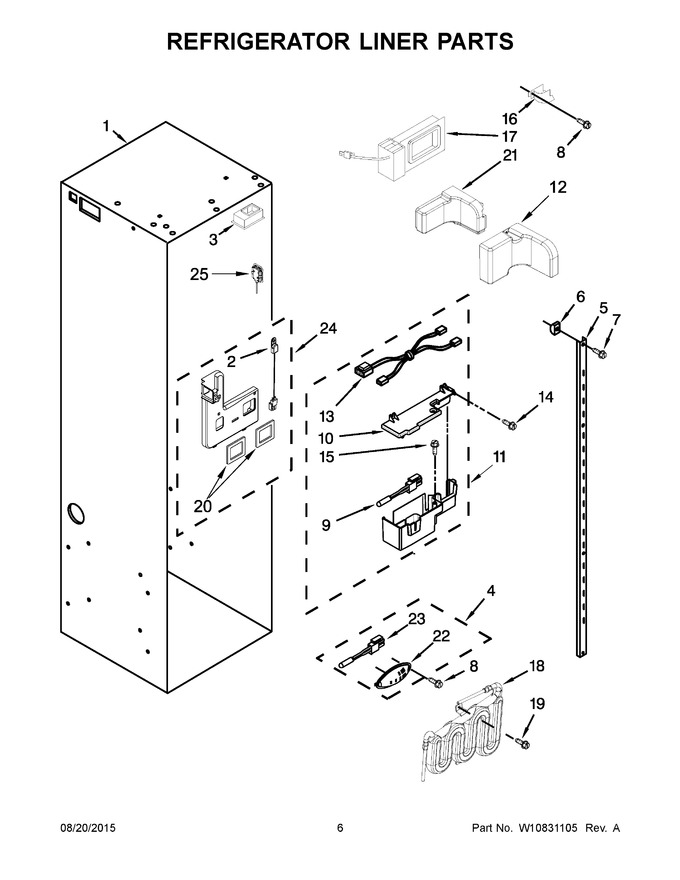

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
N/P |
|
Liner (not A Serviceable Part) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
WP2306010 |
 |
Thermistor (Replaces: 2306010) |
|
|
Immediately |
$ 103.58 |
|
|
| 3 |
2208970 |
|
Duct, Air |
|
|
|
$ 151.40 |
|
|
| 4 |
W10784036 |
|
Assembly, Thermistor |
|
|
Immediately |
$ 106.96 |
|
|
| 5 |
W10794051 |
|
Ladder, Shelf (short) |
|
Appelez-nous
|
- |
|
|
|
| 6 |
2259445 |
|
Support, Ladder |
|
Appelez-nous
|
- |
|
|
|
| 7 |
W10678207 |
|
Screw (black) (Replaces: W10745668) |
|
|
|
$ 16.43 |
|
|
| 8 |
W10678210 |
|
Screw (black) |
|
|
|
$ 19.80 |
|
|
| 9 |
WP2302937 |
 |
Thermistor (Replaces: 2302937) |
|
|
|
$ 88.41 |
|
|
| 10 |
W10785658 |
|
Lid, Baffle |
|
Appelez-nous
|
- |
|
|
|
| 11 |
W10785656 |
|
Assembly, Control Baffle |
|
|
|
$ 389.57 |
|
|
| 12 |
W10782827 |
|
Cover, Air Diffuser |
|
Appelez-nous
|
- |
|
|
|
| 13 |
2310205 |
|
Assembly, Meat Pan Wire |
|
Appelez-nous
|
- |
|
|
|
| 14 |
W10784931 |
|
Screw (black) |
|
Appelez-nous
|
- |
|
|
|
| 15 |
WP489069 |
 |
Screw (Replaces: 1157158) |
|
|
Immediately |
$ 8.40 |
|
|
| 16 |
W10775705 |
|
Guard, Air Return |
|
Appelez-nous
|
- |
|
|
|
| 17 |
WP2221296 |
 |
Assembly, Air Baffle (Replaces: 2221296) |
|
|
Immediately |
$ 412.58 |
|
|
| 18 |
W10645131 |
 |
Reservoir, Water |
|
|
|
$ 288.33 |
|
|
| 19 |
W10141518 |
|
Screw |
|
|
|
$ 9.54 |
|
|
| 20 |
2259398 |
|
Seal, Air Duct |
|
Appelez-nous
|
- |
|
|
|
| 21 |
W10797519 |
|
Assembly, Air Diffuser |
|
|
|
$ 302.98 |
|
|
| 22 |
W10784036 |
|
Cover, Thermistor (Replaces: W10783891) |
|
|
Immediately |
$ 106.96 |
|
|
| 23 |
WP2188820 |
 |
Thermistor (Replaces: 2188820) |
|
|
Immediately |
$ 30.85 |
|
|
| 24 |
W10795347 |
|
Assembly, Spacer |
|
|
|
$ 153.38 |
|
|
| 25 |
W11683242 |
 |
Assembly, Led Module (Replaces: W10607479) |
|
|
Immediately |
$ 333.96 |
|
|
| 5A |
W10749139 |
|
Ladder, Shelf (long) |
|
|
|
$ 184.31 |
|
|
