| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WPW10187538 |
|
Assembly, Shelf (Replaces: W10187538) |
|
|
|
$ 409.83 |
|
|
| 2 |
W10836033 |
|
Assembly, Meat Pan Cover (Replaces: W10785392) |
|
|
|
$ 291.01 |
|
|
| 3 |
W10836034 |
|
Assembly, Crisper Cover (Replaces: W10785395) |
|
|
|
$ 1,128.37 |
|
|
| 4 |
W10884289 |
|
Assembly, Crisper Pan (Replaces: W10789214) |
|
|
|
$ 389.04 |
|
|
| 5 |
W10844011 |
|
Slide, Meat Pan (left Hand) (Replaces: W10794953) |
|
|
|
$ 320.20 |
|
|
| 6 |
W10881986 |
|
Front, Crisper Pan (Replaces: W10789216) |
|
Appelez-nous
|
- |
|
|
|
| 7 |
W10769876 |
|
Spacer, Crisper |
|
|
Immediately |
$ 241.24 |
|
|
| 8 |
W10844010 |
|
Slide, Crisper (left Hand) (Replaces: W10794952) |
|
|
Immediately |
$ 343.11 |
|
|
| 9 |
W10783742 |
|
Spacer, Meat Pan |
|
Appelez-nous
|
- |
|
|
|
| 10 |
WP8533928 |
 |
Screw (stainless) (left Hand) (Replaces: 8533928) |
|
|
Immediately |
$ 8.26 |
|
|
| 11 |
W10884290 |
|
Assembly, Meat Pan (Replaces: W10789218) |
|
|
|
$ 388.74 |
|
|
| 12 |
W10881982 |
|
Assembly, Meat Pan Front (Replaces: W10789221) |
|
Appelez-nous
|
- |
|
|
|
| 13 |
W10701859 |
|
Rack, Wine |
|
|
|
$ 21.53 |
|
|
| 14 |
W10593207 |
|
Assembly, Produce Preserver |
|
Appelez-nous
|
- |
|
|
|
| 10A |
W10784931 |
|
Screw (black) (right Hand) |
|
Appelez-nous
|
- |
|
|
|
| 5A |
W10732727 |
|
Slide, Meat Pan (right Hand) |
|
|
Immediately |
$ 342.94 |
|
|
| 8A |
W10732303 |
|
Slide, Crisper (right Hand) |
|
|
Immediately |
$ 343.11 |
|
|

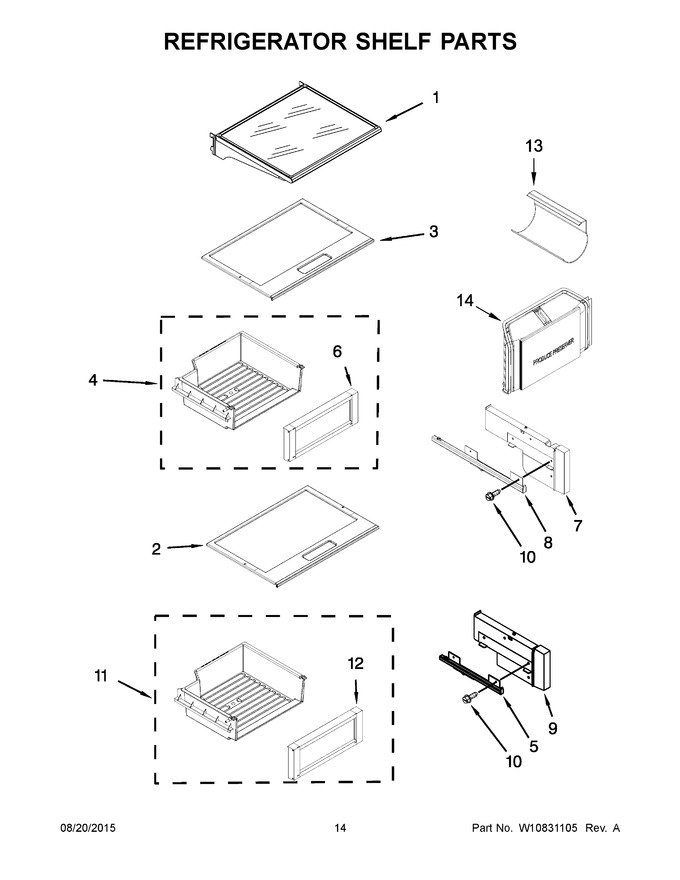

View Diagram in Separate Window
