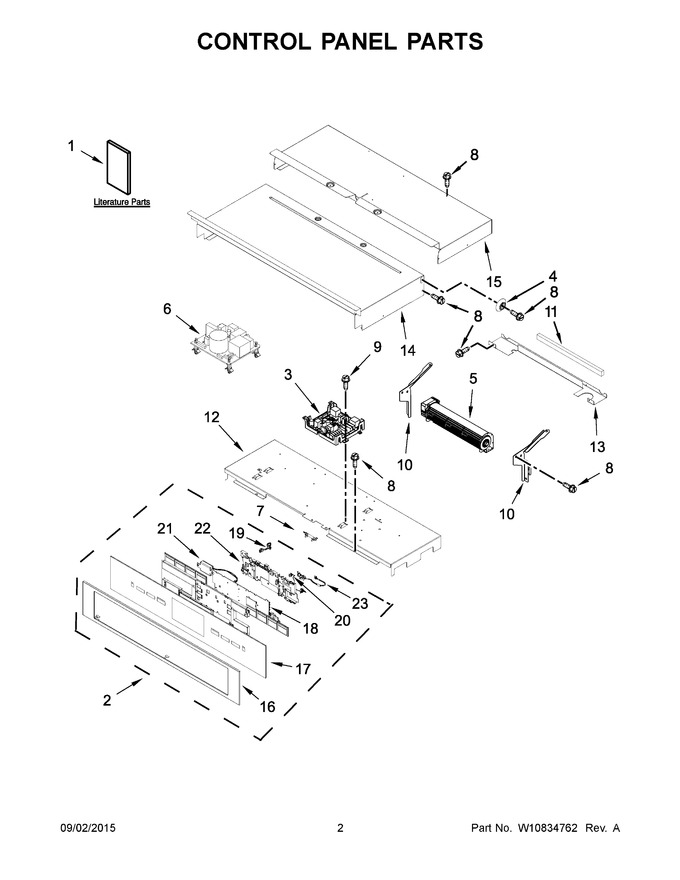

01 - Cover Sheet


02 - Control Panel Parts


03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10754337		Guide, Use & Care		Appelez-nous	-
2	W11087468		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W10713566)				$ 1,764.05
3	W10821712		Manager, Appliance   (Replaces: W10635086)			Immediately	$ 512.59
4	W10618105		Spacer, Lateral		Appelez-nous	-
5	W11713858		Blower   (Replaces: W10669823)			Immediately	$ 331.99
6	WPW10260060		Board, Power Supply   (Replaces: W10260060)			Immediately	$ 302.24
7	W11204568		Fuse, Thermal   (Replaces: W10782117)			Immediately	$ 131.58
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.95
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 7.75
12	W10694467		Tray, Electronic		Appelez-nous	-
13	W10655465		Chassis, Back Divider		Appelez-nous	-
14	W10444125		Chassis, Cover Top Front 30		Appelez-nous	-
15	W10904156		Chassis, Cover Top Back 30   (Replaces: W10667383)		Appelez-nous	-
16	W10444132		Skin, Control Panel (stainless)				$ 289.05
17	W10710542		Assembly, Glass Panel (stainless)		Appelez-nous	-
18	W10746725		Assembly, Hmi Central		Appelez-nous	-
19	W10566973		Harness, Keypad (left To Center)				$ 78.28
20	W10524350		Harness, Keypad (right To Center)				$ 74.49
21	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 77.08
22	W10668510		Housing				$ 100.16
23	W10575307		Harness, Power Supply			Immediately	$ 165.56
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W10790014		Instructions, Installation		Appelez-nous	-
1B	W10767737		Sheet, Tech		Appelez-nous	-
NI	4452400		Strap, Lead Ground				$ 43.26
NI	4448664		Clamp, Conduit				$ 20.39
NI	W10655464		Bracket, Harness				$ 38.77
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11132992		Harness, Main   (Replaces: W10571360)				$ 237.95
NI	W11226263		Harness, Signal   (Replaces: W10517751)				$ 220.11
NI	W10766153		Assembly, Antenna & Housing				$ 178.41
NI	W10573327		Harness, Door Latch				$ 64.45
NI	W11699910		Harness, Eol   (Replaces: W10562910)			Immediately	$ 31.38
NI	4450800		Screw, Grounding				$ 12.83
NI	16515		Clip, Harness   (Replaces: 313438)				$ 19.55
