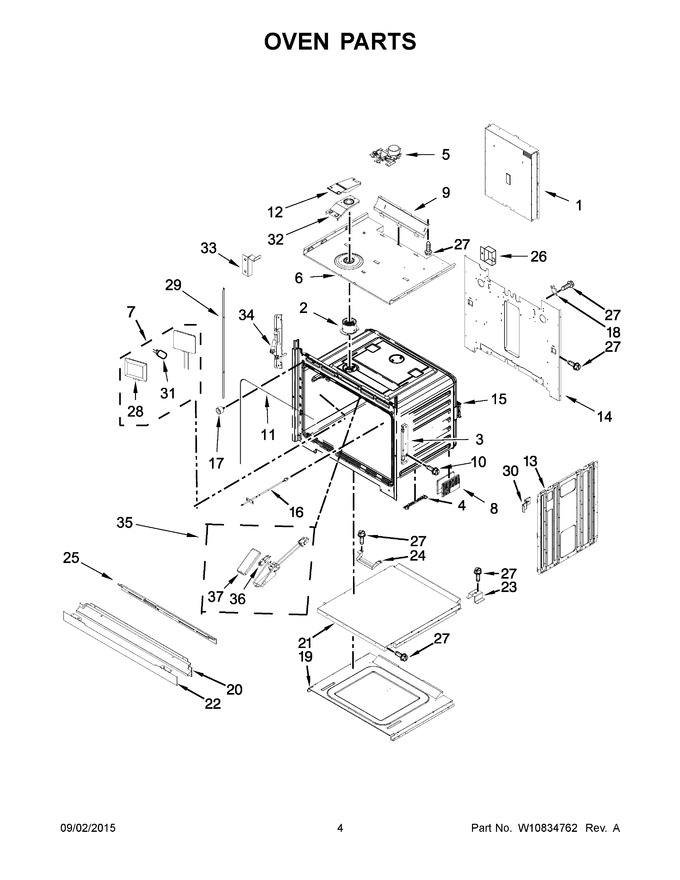

03 - Oven Parts
04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10318196 | Duct, Chassis Back |
|
$ 218.89 | |||||
| 2 | W11240525 | Tube, Vent (Replaces: W10282946) |
|
$ 25.54 | |||||
| 3 | W11613828 | Receiver, Hinge (Replaces: W10616802) |
|
Immediately | $ 57.49 | ||||
| 4 | W11240831 | Spacer, Base (Replaces: W10618102) |
|
$ 17.25 | |||||
| 5 | W10883049 | Latch, Motorized (Replaces: W10314880) |
|
Immediately | $ 306.46 | ||||
| 6 | W10730172 | Top, Chassis |
|
- | |||||
| 7 | WPW10519866 | Assembly, Oven Light (Replaces: W10519866) |
|
$ 96.33 | |||||
| 8 | W10821321 | Foot, Base (Replaces: W10618101) |
|
$ 33.51 | |||||
| 9 | W10904163 | Deflector, Blower (Replaces: W10641572) |
|
Immediately | $ 169.79 | ||||
| 10 | WPW10254050 | Screw (Replaces: W10254050) |
|
$ 9.22 | |||||
| 11 | W11623080 | Gasket (Replaces: W10739089) |
|
Immediately | $ 72.35 | ||||
| 12 | W10616810 | Cover, Vent Exhaust |
|
$ 69.95 | |||||
| 13 | W10663556 | Side, Chassis (left) |
|
- | |||||
| 14 | W10282992 | Back, Chassis |
|
- | |||||
| 15 | N/P | Liner, Oven (not Serviceable) |
|
- | |||||
| 16 | W10859573 | Probe, Sensor (Replaces: W10622170) |
|
Immediately | $ 133.83 | ||||
| 17 | WPW10351278 | Bumper & Screw (Replaces: W10351278) |
|
$ 11.01 | |||||
| 18 | WP4449751 | Thermostat (tod) (Replaces: 4449751) |
|
Immediately | $ 111.84 | ||||
| 19 | W11238787 | Base, Chassis (Replaces: W10282900) |
|
$ 349.65 | |||||
| 20 | WPW10327374 | Assembly, Bottom Vent (stainless) (Replaces: W10327374) |
|
$ 346.78 | |||||
| 21 | WPW10283008 | Chassis, Bottom Duct (Replaces: W10283008) |
|
$ 220.05 | |||||
| 22 | WPW10327377 | Trim, Bottom Vent (stainless) (Replaces: W10327377) |
|
$ 180.08 | |||||
| 23 | W10213759 | Support, Air Channel |
|
- | |||||
| 24 | W10351308 | Spacer, Chassis Bottom Duct |
|
$ 58.73 | |||||
| 25 | W10283036 | Vent, Top 30 |
|
$ 63.87 | |||||
| 26 | W11819303 | Cover, Connector (Replaces: 8285593) |
|
- | |||||
| 27 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 28 | WPW10519866 | Lens, Light (Replaces: W10472386) |
|
$ 96.33 | |||||
| 29 | W10536160 | Cover, Side Trim (black (left)) (Replaces: W10344481) |
|
Immediately | $ 42.13 | ||||
| 30 | W11376811 | Spacers, Front (Replaces: W10618106) |
|
$ 17.15 | |||||
| 31 | WPW10472384 | Bulb, Light (Replaces: W10472384) |
|
Immediately | $ 92.48 | ||||
| 32 | W10616809 | Base, Vent Exhaust |
|
$ 32.24 | |||||
| 33 | W10863234 | Bracket, Side Cover (left) (Replaces: W10737716) |
|
- | |||||
| 34 | W11045086 | Receiver, Hinge (Replaces: W10725427) |
|
Immediately | $ 128.82 | ||||
| 35 | W11325525 | Assembly, Light (top) (Replaces: W10661201) |
|
$ 101.02 | |||||
| 36 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 47.38 | ||||
| 37 | W10169756 | Lens, Light |
|
$ 42.19 | |||||
| 13A | W10318190 | Side, Chassis (right) |
|
$ 117.20 | |||||
| 29A | W10536160 | Cover, Side Trim (black (right)) (Replaces: W10344480) |
|
Immediately | $ 42.13 | ||||
| 33A | W10737715 | Bracket, Side Cover (right) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11688731 | Insulation, Wrap (Replaces: W10520715) |
|
$ 124.87 | |||||
| NI | W11688414 | Insulation, Cavity (Replaces: W10566640) |
|
- |
