SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Door

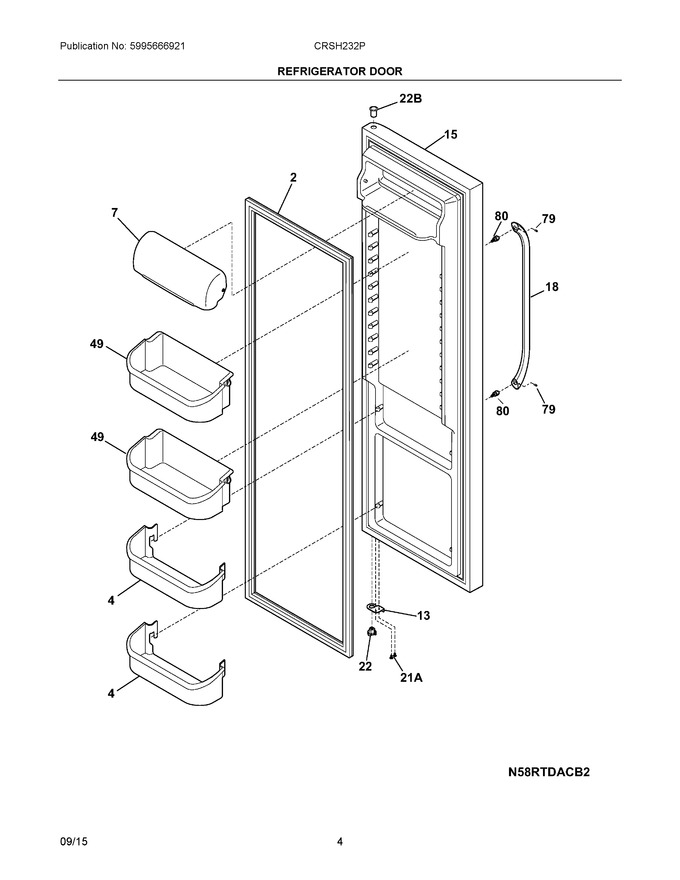

03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786015		Gasket-refr Door, Black, Magnetic   (Replaces: 241786007)			Immediately	$ 105.18
4	240363701		Bin-door, 2-liter			Immediately	$ 66.02
7	240338313		Door, Dairy, Clear   (Replaces: 240338303)			Immediately	$ 89.78
13	240581905		Door Stop, Black, Ref				$ 66.94
15	807460101		Refrigerator Door, Complete, Stainless		Appelez-nous	-
18	242152701		Handle-door, Stainless Steel, Refr/frz, With Set Screw		Appelez-nous	-
22	242015302		Bearing-hinge (ref), Black, Closer				$ 11.80
49	240324501		Bin-door, Gallon			Immediately	$ 76.73
79	218755402		Screw-set, 10-32 X .500 In			Immediately	$ 36.67
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 20.67
21A	240442708		Screw-#10-32 X 3/4, Zinc   (Replaces: 240442706)				$ 9.27
22B	240328404		Bearing-hinge, Black, Upper				$ 25.41
NI	242115801		Nameplate, Crosley		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
