SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


12 - Wiring Diagram

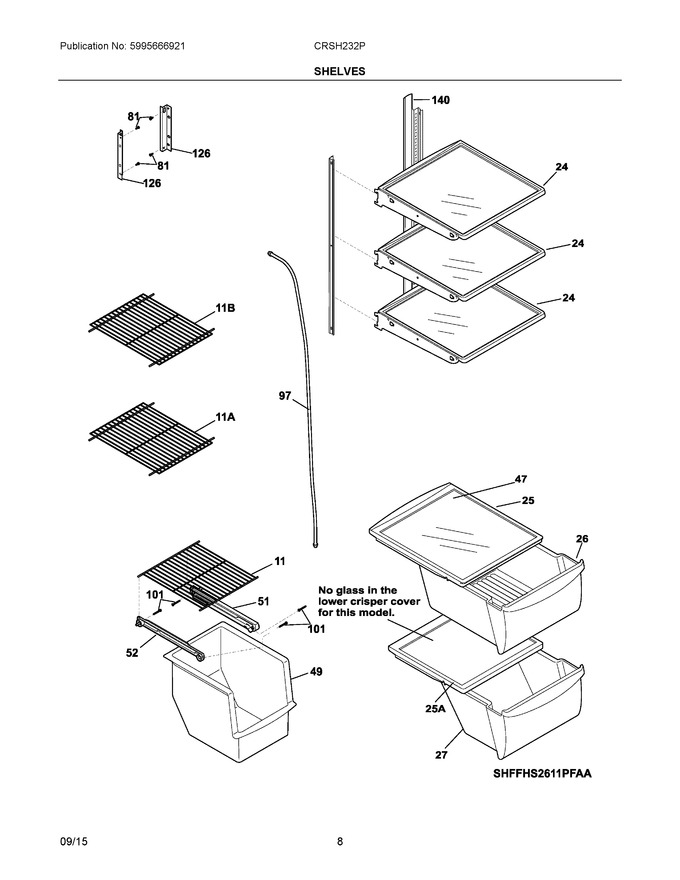

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	241657601		Shelf, Flip Up, Wire				$ 88.31
24	240355277		Shelf-"spill-safe", Cantilever, Fixed				$ 237.63
25	240354502		Cover-crisper Pan, Upper			Immediately	$ 111.13
26	240354723		Pan-crisper, Upper   (Replaces: 240354706)			Immediately	$ 182.57
27	240354805		Pan-crisper, Lower   (Replaces: 240354806)				$ 186.32
47	240350613		Insert-pan Cover, Glass   (Replaces: 240350631)				$ 137.35
49	240564301		Basket-sliding				$ 146.63
51	240343002		Hanger-basket, Rh				$ 72.47
52	240343102		Hanger-basket, Lh				$ 77.52
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 15.75
97	242220208		Tube-water Inlet, .315 - 97.50", Natural			Immediately	$ 48.04
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 14.96
126	241674401		Channel, Auger Mtg, Lh				$ 52.76
140	240430501		Channel, Wtr Tube Cover				$ 108.68
11A	5304532465		Shelf, Fixed, Freezer   (Replaces: 241657501)				$ 60.11
11B	5304532464		Shelf, Fixed Upper, Freezer   (Replaces: 241657503)		Appelez-nous	-
126A	241674402		Channel, Auger Mtg, Rh				$ 48.04
25A	240354602		Cover-crisper Pan, Lower				$ 98.29
NI	242200102		Clip, Tubing, 90 Deg Elbow				$ 11.81
NI	807332418		Label, Energy Guide		Appelez-nous	-
NIA	241806601		Connector-water, Straight, 5/16 To 5/16   (Replaces: 242103001)			Immediately	$ 78.40
NIA	240349801		Clip-slide, Pan				$ 22.75
NIA	240362101		Clip-slide, Cover				$ 52.25

    View Diagram in Separate Window       Print Part List
