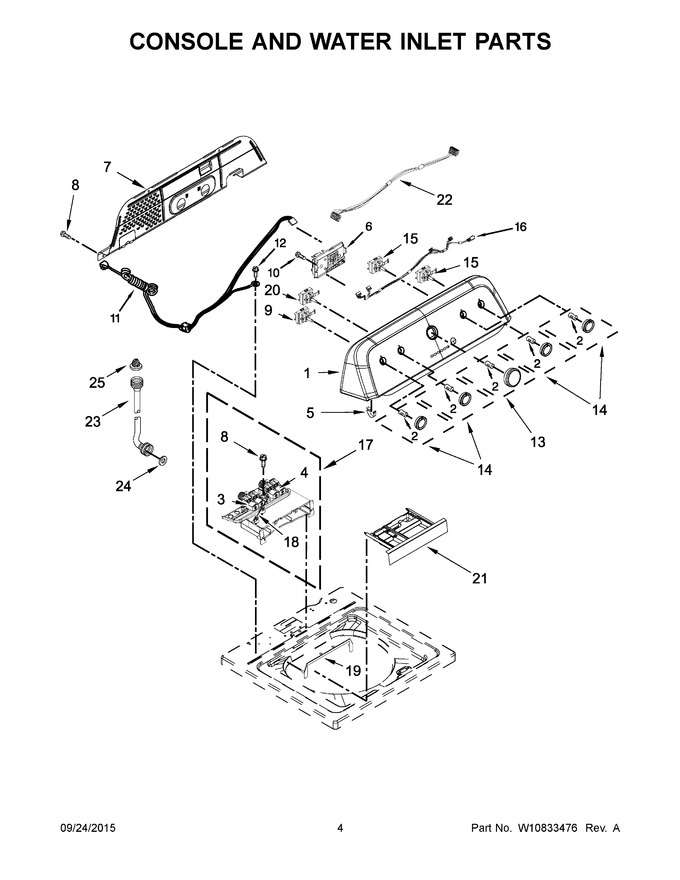

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10789660 | Panel, Console |
|
- | |||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 3 | W11168740 | Valve, Cold Water Inlet (Replaces: W10240949) |
|
Immediately | $ 163.15 | ||||
| 4 | W11168743 | Valve, Hot Water Inlet (Replaces: W10240948) |
|
Immediately | $ 112.07 | ||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W10625696 | Control Unit Assembly, Machine And Motor |
|
$ 265.05 | |||||
| 7 | W10641337 | Panel, Console Rear Cover |
|
$ 206.30 | |||||
| 8 | WPW10109200 | Screw (Replaces: 97787) |
|
Immediately | $ 8.00 | ||||
| 9 | W10584422 | Switch, Rotary Encoder (4 Position) |
|
Immediately | $ 193.14 | ||||
| 10 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.86 | ||||
| 11 | WPW10525192 | Cord, Power (Replaces: W10621620) |
|
$ 155.26 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.76 | ||||
| 13 | W11837899 | Knob, Timer (grey) (Replaces: W10558463) |
|
Immediately | $ 17.93 | ||||
| 14 | W11837893 | Knob, Control (grey) (Replaces: W10562155) |
|
$ 17.93 | |||||
| 15 | W11197418 | Switch, Rotary Encoder (2 Position) (Replaces: W10584420) |
|
$ 202.94 | |||||
| 16 | W11211519 | Harness, Upper (Replaces: W10694680) |
|
$ 176.00 | |||||
| 17 | W11127358 | Housing Assembly (Replaces: W10638044) |
|
$ 350.64 | |||||
| 18 | W10601130 | Harness, Valve |
|
- | |||||
| 19 | W11501416 | Bezel, Dispenser (Replaces: W10601843) |
|
$ 29.57 | |||||
| 20 | W10858095 | Switch, Rotary Encoder (5 Position) (Replaces: W10584423) |
|
$ 193.42 | |||||
| 21 | W11127356 | Drawer, Dispenser Assembly (Replaces: W10794843) |
|
Immediately | $ 91.06 | ||||
| 22 | W10786100 | Harness, Jumper |
|
$ 180.93 | |||||
| 23 | WP89503 | Hose, Water Inlet (cold) (Replaces: W10194210) |
|
Immediately | $ 24.09 | ||||
| 24 | WP16123 | Washer, Hose (Replaces: W10242307) |
|
$ 7.70 | |||||
| 25 | 285452A | Washer, Filter (Replaces: W10810281) |
|
Immediately | $ 9.23 | ||||
| 23A | WP89503 | Hose, Water Inlet (hot) (Replaces: W10194211) |
|
Immediately | $ 24.09 |
