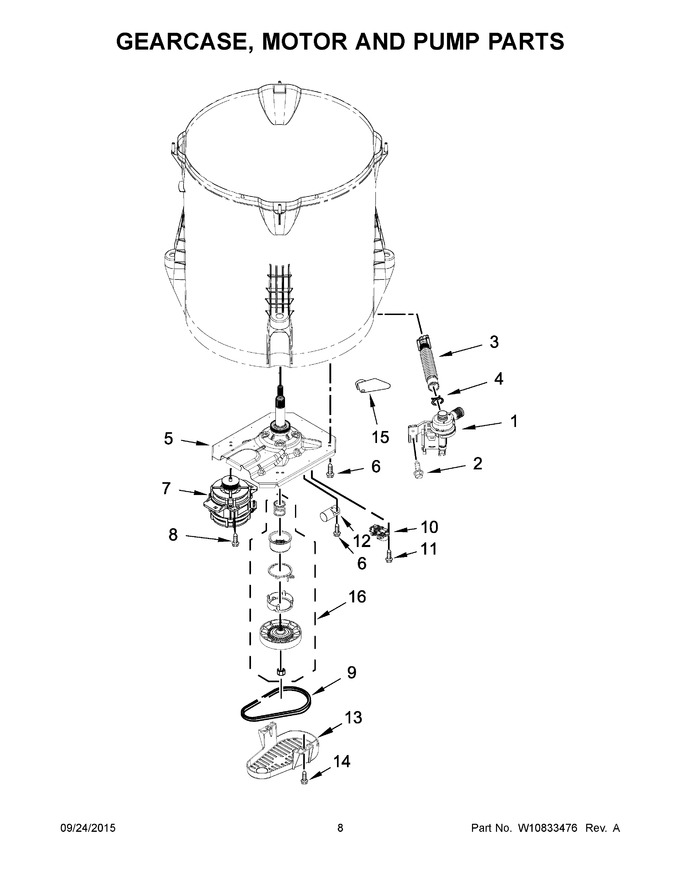

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10581874 | Pump Assembly, Drain (Replaces: W10581874) |
|
Immediately | $ 117.60 | ||||
| 2 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 8.39 | |||||
| 3 | W10802689 | Hose, Tub To Pump (Replaces: W10763259) |
|
$ 34.64 | |||||
| 4 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.81 | ||||
| 5 | W11454734 | Gearcase Assembly (Replaces: W10006481) |
|
Immediately | $ 298.61 | ||||
| 6 | WPW10249633 | Screw (Replaces: W10249633) |
|
Immediately | $ 7.55 | ||||
| 7 | W11283592 | Motor, Drive (Replaces: W10006487) |
|
Immediately | $ 420.88 | ||||
| 8 | W11685857 | Screw (Replaces: W10094780) |
|
$ 14.81 | |||||
| 9 | WPW10006384 | Belt, Drive (Replaces: W10006384) |
|
Immediately | $ 38.66 | ||||
| 10 | W11481722 | Actuator, Shift (Replaces: W10597177) |
|
Immediately | $ 165.51 | ||||
| 11 | W11596033 | Screw (Replaces: 9741052) |
|
$ 14.23 | |||||
| 12 | W11395618 | Capacitor, Motor Run (Replaces: W10625046) |
|
Immediately | $ 108.62 | ||||
| 13 | WPW10427633 | Shield, Pulley Cover (Replaces: W10427633) |
|
Immediately | $ 49.78 | ||||
| 14 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 8.43 | ||||
| 15 | W10637932 | Shield, Heat |
|
$ 29.90 | |||||
| 16 | W10721967 | Splutch Kit (60hz) |
|
Immediately | $ 55.68 |
