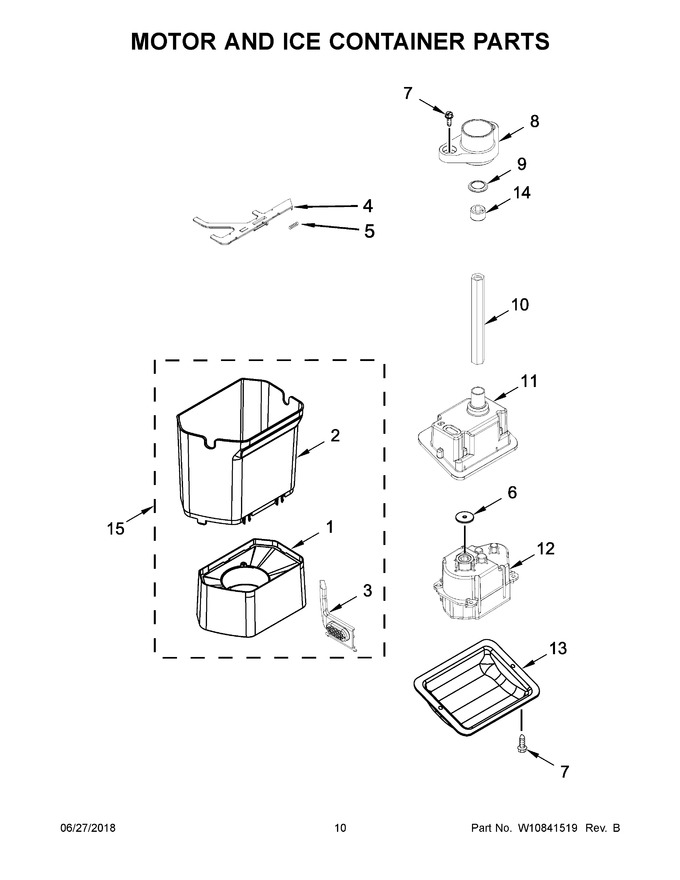

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10781982		Bin, Crusher		Appelez-nous	-
2	WP2222970		Bin, Ice   (Replaces: 2222970)			Immediately	$ 262.66
3	W10749207		Button, Bin				$ 69.70
4	W10134785		Latch, Bin				$ 110.96
5	WP2198608		Spring, Latch   (Replaces: 2198608)				$ 7.55
6	WPW10254073		Washer   (Replaces: W10254073)			Immediately	$ 10.61
7	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.70
8	W10785288		Clip, Shaft				$ 13.40
9	WP2198628		Seal   (Replaces: 2198628)			Immediately	$ 12.57
10	W11841865		Shaft, Drive   (Replaces: 2318030)			Immediately	$ 115.26
11	W11404938		Enclosure, Motor   (Replaces: W10818351)			Immediately	$ 72.96
12	2315547		Motor, Dispenser		Appelez-nous	-
13	W10785082		Cover, Motor				$ 90.83
14	WP2315559		Sleeve, Bearing   (Replaces: 2315559)			Immediately	$ 85.41
15	W10784412		Assembly, Ice Container			Immediately	$ 375.98
