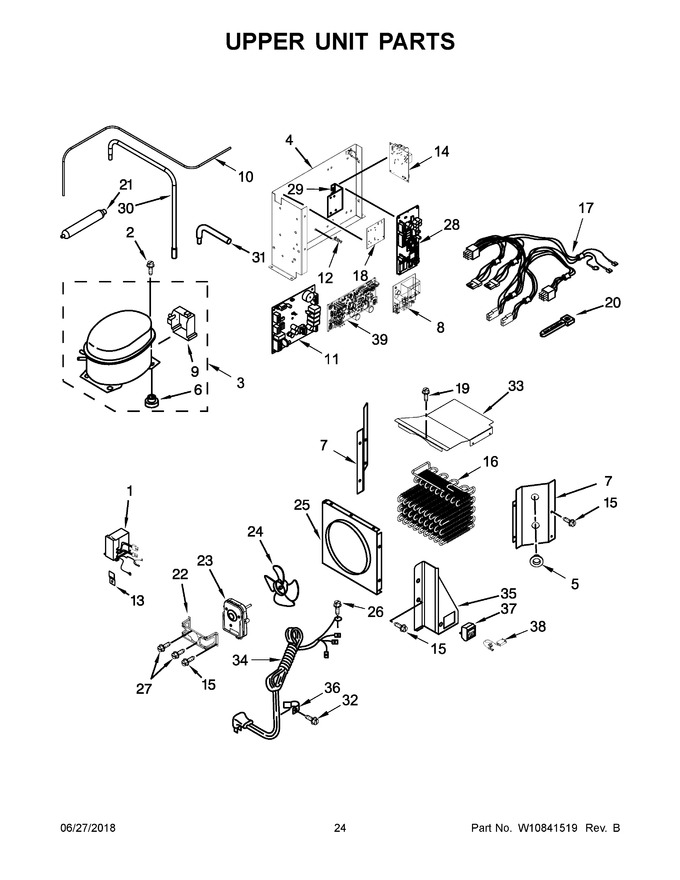

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11573593 | Assembly, Inverter Box (Replaces: W10645666) |
|
$ 223.37 | |||||
| 2 | 876811 | Screw (Replaces: 489373) |
|
$ 7.42 | |||||
| 3 | W10720770 | Compressor (Replaces: W10653005) |
|
$ 860.28 | |||||
| 4 | W10550831 | Housing, Control Board Mounting |
|
- | |||||
| 5 | W10587113 | Grommet |
|
- | |||||
| 6 | 876811 | Grommet (Replaces: 1100826) |
|
$ 7.42 | |||||
| 7 | WPW10525177 | Support, Condenser (left Hand) (Replaces: W10525177) |
|
$ 105.60 | |||||
| 8 | WP2259350 | Board, Power Supply (Replaces: 2259350) |
|
$ 138.43 | |||||
| 9 | 2215676 | Cover, Terminal |
|
$ 89.87 | |||||
| 10 | W10648264 | Tube, Heat Loop Transition |
|
$ 73.44 | |||||
| 11 | WPW10200659 | Control, Electronic (Replaces: W10200659) |
|
Immediately | $ 355.73 | ||||
| 12 | WP2203075 | Spacer (Replaces: 2203075) |
|
Immediately | $ 17.91 | ||||
| 13 | 2256328 | Bracket, Inverter Mounting |
|
- | |||||
| 14 | WPW10624574 | Supply, Power (Replaces: W10624574) |
|
Immediately | $ 231.58 | ||||
| 15 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.86 | ||||
| 16 | W10591457 | Condenser |
|
$ 236.71 | |||||
| 17 | W10775849 | Assembly, Unit Wire |
|
$ 341.09 | |||||
| 18 | W10770059 | Plate, Circuit Board (top) |
|
$ 137.85 | |||||
| 19 | WP489399 | Screw (Replaces: 489399) |
|
$ 6.95 | |||||
| 20 | WPW10339879 | Tie, Wire (Replaces: 2155774) |
|
$ 7.90 | |||||
| 21 | WPW10143759 | Drier (Replaces: W10175593) |
|
Immediately | $ 30.78 | ||||
| 22 | W10414681 | Bracket, Fan Motor |
|
$ 75.74 | |||||
| 23 | W11127829 | Motor, Condenser Fan (Replaces: W10909387) |
|
Immediately | $ 185.05 | ||||
| 24 | WPW10139483 | Blade, Fan (Replaces: W10139483) |
|
$ 95.07 | |||||
| 25 | W10415670 | Orifice, Fan |
|
- | |||||
| 26 | 00487294 | Screw (Replaces: 487294) |
|
$ 175.09 | |||||
| 27 | WP8533993 | Screw (Replaces: W10146359) |
|
$ 10.57 | |||||
| 28 | WP2318054 | Control, Electronic (Replaces: 2318054) |
|
Immediately | $ 314.13 | ||||
| 29 | W10761479 | Plate, Circuit Board |
|
- | |||||
| 30 | W10624944 | Tube, Drier Transition |
|
$ 33.57 | |||||
| 31 | W10528578 | Tube, Process |
|
$ 37.92 | |||||
| 32 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 33 | W10525175 | Cover, Condenser Support |
|
$ 68.93 | |||||
| 34 | 2310196 | Cord, Power |
|
Immediately | $ 84.30 | ||||
| 35 | W10321055 | Bracket, Control Assembly |
|
- | |||||
| 36 | 549193 | Clamp, Power Cord |
|
$ 13.39 | |||||
| 37 | WP2266802 | Switch, Power Disconnect (Replaces: 2266802) |
|
$ 103.89 | |||||
| 38 | 2310195 | Assembly, Jumper Wire (power Switch To Power Cord) |
|
$ 117.33 | |||||
| 39 | W10830288 | Supply, Led Power (Replaces: W10790783) |
|
Immediately | $ 469.53 | ||||
| 7A | WPW10525179 | Support, Condenser (right Hand) (Replaces: W10525179) |
|
$ 105.60 | |||||
| NI | 876764 | Valve, Access (3/16") |
|
Immediately | $ 91.35 | ||||
| NI | WP978025 | Valve, Access (1/4") (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| NI | N/P | Refrigerant Charge 6.75 Oz. (r-134a) |
|
- | |||||
| NI | 978026 | Valve, Access (5/16") |
|
Immediately | $ 128.09 | ||||
| NI | SF5538 | Valve, Access (3/8") (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978029 | Valve, Access (5/8") |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4") |
|
$ 130.71 |
