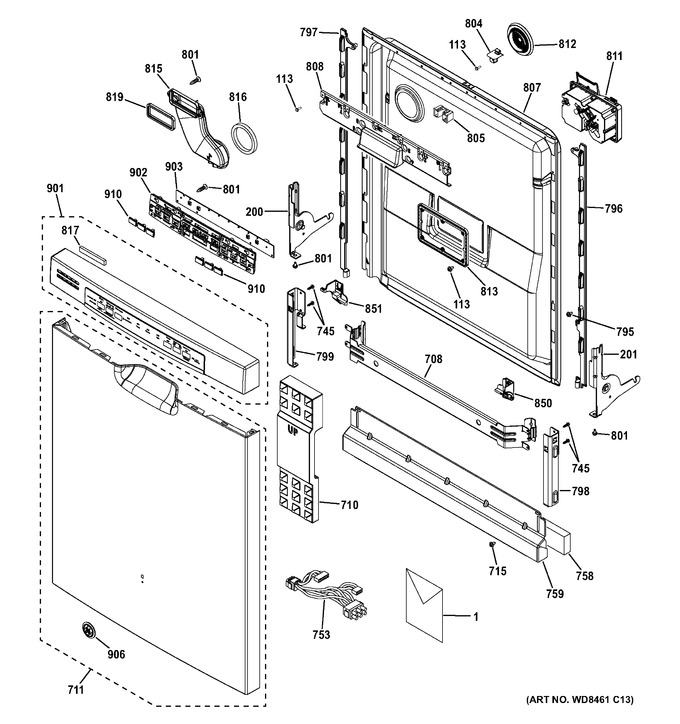

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Sump & Filter Assembly


6 - Sump & Motor Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-31506		Pm Install Instructions		Appelez-nous	-
1	165D9739P006		Insert Mini Manual		Appelez-nous	-
1	31-30643-3		Pm Mini-manual		Appelez-nous	-
1	49-55082		Pm Owners Manual		Appelez-nous	-
1	WD02X10211		Scr 1/4-20 Bt Cb .563 Zn		Appelez-nous	-
113	WG04A00176		Screw 8-16 Hxw 1/2 Ss   (Replaces: WD02X10067)				$ 3.97
200	WD14X10051		Arm Hinge Asm Lh		Appelez-nous	-
201	WG04L02003		Arm Hinge Asm Rh   (Replaces: WD14X10050)				$ 78.04
708	WD30X10045		Brace Door Asm		Appelez-nous	-
710	WD01X10585		Block Foam Door		Appelez-nous	-
711	WD34X11821		Outer Door Front Ctrl Ss		Appelez-nous	-
715	WG04A02147		Scr 10-32 Gx Hxw 3/8   (Replaces: WD02X10220)				$ 3.97
745	WD02X10221		Scr 10-32 Tt Hxw 14/25 S		Appelez-nous	-
753	WD21X10544		Harness Asm Door		Appelez-nous	-
758	WD01X10581		Insulation Toe Kick		Appelez-nous	-
759	WD27X10392		Toe Kick Painted Asm		Appelez-nous	-
796	WG04A02180		Attach Strip   (Replaces: WD01X10633)			Immediately	$ 12.71
797	WG04A02187		Attach Strip   (Replaces: WD01X10634)				$ 20.65
798	WG04L02003		Bracket Support Hinge   (Replaces: WD01X10596)				$ 78.04
799	WG04L02002		Bracket Support Hinge   (Replaces: WD01X10597)				$ 76.77
801	WD02X10129		6-19 X 1/4 Torx Pan Head		Appelez-nous	-
804	WG04F06693		Striker Latch   (Replaces: WD13X10071)			Immediately	$ 9.53
805	WD13X10068		Striker Adapter		Appelez-nous	-
807	WG04A01461		Door Inner Ss   (Replaces: WD31X10140)			Immediately	$ 185.86
808	WG04L02578		Pocket Handle   (Replaces: WD12X10422)				$ 10.81
811	WG04A05239		Module Detergent   (Replaces: WD12X10415)			Immediately	$ 108.73
812	WD12X10450		Cover Vent		Appelez-nous	-
812	WG04F06983		Cover Vent   (Replaces: WD12X10423)				$ 15.54
813	WD12X10462		Plate Detergent		Appelez-nous	-
815	WG04F06701		Diverter Air Asm   (Replaces: WD12X10425)				$ 67.82
816	WG04L01634		Door Vent Seal   (Replaces: WD08X10092)			Immediately	$ 11.12
817	WG04F06914		Foam Vent Insert   (Replaces: WD01X20063)				$ 6.09
819	WD08X10091		Gasket Vent		Appelez-nous	-
901	WG04F05540		Panel Control Asm   (Replaces: WD34X20133)				$ 248.10
902	WD12X10449		Silicone Light Pipe		Appelez-nous	-
903	WD21X21918		Kit Svc Ui Front Logic		Appelez-nous	-
906	WG04A01013		Badge Ge Asm   (Replaces: WR04X10181)				$ 23.82
910	WD09X20131		Button Tree Painted		Appelez-nous	-
