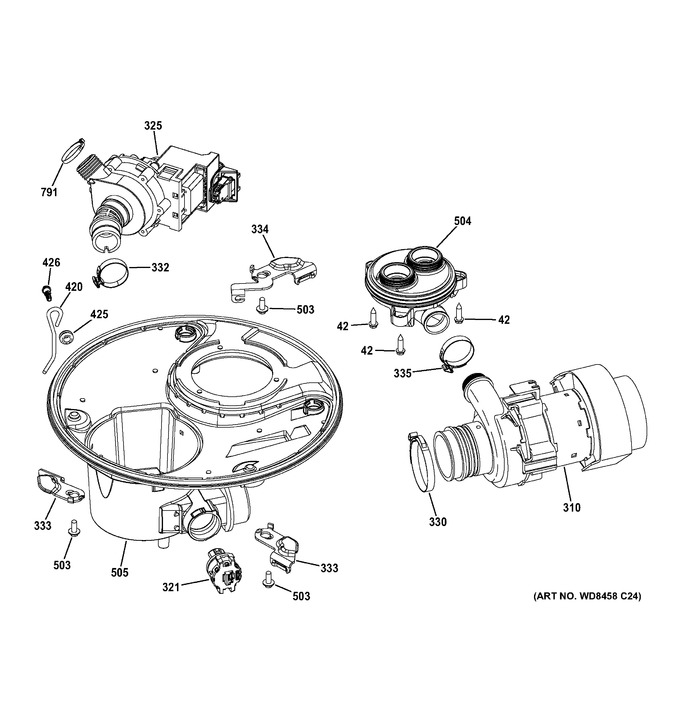

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Sump & Filter Assembly


6 - Sump & Motor Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
42	WD02X10110		Screw #8-3/4 L Hx Hd Ss		Appelez-nous	-
310	WD35X10385		Wash Pump Kit		Appelez-nous	-
321	WG04F05595		Sensor Turbidity Asm   (Replaces: WD21X10494)				$ 50.92
325	WG04F12108		Pump Drain Kit   (Replaces: WD35X20553)			Immediately	$ 208.41
330	WG04A01134		Clamp   (Replaces: WD01X10571)			Immediately	$ 21.85
332	WD01X10573		Clamp		Appelez-nous	-
333	WD01X10632		Latch Cam		Appelez-nous	-
334	WD01X10575		Latch Cam		Appelez-nous	-
335	WD01X10572		Clamp		Appelez-nous	-
420	WD01X10579		Hanger Drain Pump		Appelez-nous	-
425	WD01X10101		Grommet		Appelez-nous	-
426	WD02X10094		Wd02x10093		Appelez-nous	-
503	WB01T10103		Scr 10-16 Ab Hxw .532		Appelez-nous	-
504	WD18X10052		Diverter Passive Asm		Appelez-nous	-
505	WG04F06743		Sump Manifold   (Replaces: WD18X10054)				$ 66.87
791	WW01A00722		Clamp   (Replaces: WD01X10611)				$ 12.71
	WG04F04726		Latch Tub Side Standard			Immediately	$ 69.95
	WG04F11770		Valve Water Asm   (Replaces: WG04F09310)			Immediately	$ 76.30
	WG04A05239		Module Detergent   (Replaces: WG04F09253)			Immediately	$ 108.73
	WG04F11614		Machine Control Good   (Replaces: WG04F09307)				$ 217.65
