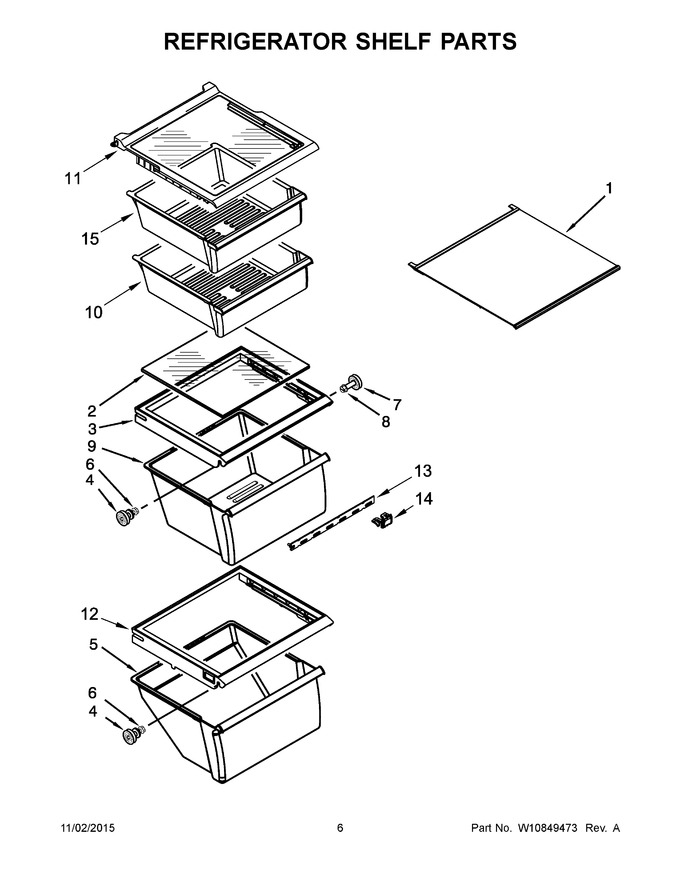

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10645500		Shelf Assembly   (Replaces: W10645500)				$ 278.36
2	W10864399		Glass, Cover   (Replaces: 2179259)				$ 232.03
3	W10636045		Cover, Crisper		Appelez-nous	-
4	W11223328		Assembly, Shelf Stud   (Replaces: W10173126)			Immediately	$ 14.77
5	WP2188664		Pan, Meat   (Replaces: 2188654)			Immediately	$ 92.70
6	WP3-24004-109		Screw   (Replaces: W10191954)				$ 9.14
7	W11527119		Assembly, Shelf Stud   (Replaces: W10173127)		Appelez-nous	-
8	W10191952		Screw				$ 5.65
9	WPW10178772		Pan, Crisper   (Replaces: W10178772)				$ 165.31
10	WP2309517		Pan, Snack   (Replaces: 2309518)				$ 133.06
11	WPW10636070		Shelf, Snack Pan   (Replaces: W10636070)				$ 192.36
12	W10636041		Cover, Crisper		Appelez-nous	-
13	WP2179342		Slide, Humidity Control   (Replaces: 2179342)				$ 30.60
14	WP2179343		Body, Humidity Control   (Replaces: 2179343)				$ 34.02
15	WP2188656		Pan, Crisper   (Replaces: 2188652)				$ 143.22
