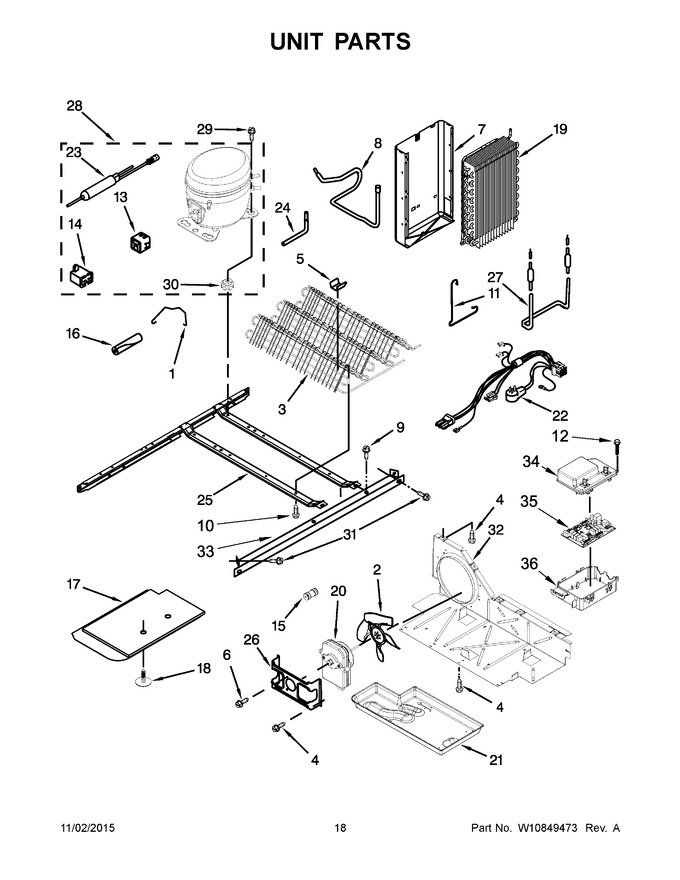

10 - Unit Parts


11 - Ice Maker Parts


12 - Air Flow Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10204187		Strap, Bale		Appelez-nous	-
2	W11458267		Blade, Fan   (Replaces: 2225834)			Immediately	$ 25.19
3	2324712		Assembly, Condenser				$ 323.45
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
5	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 19.38
6	WP8533993		Screw   (Replaces: 8533993)				$ 11.21
7	W10194475		Assembly, Heat Shield And Drain Pan		Appelez-nous	-
8	W10576260		Tube, Suction		Appelez-nous	-
9	WP489427		Screw   (Replaces: 489427)				$ 7.84
10	W11544659		Screw   (Replaces: 8281232)				$ 14.35
11	2161324		Clip, Defrost Heater		Appelez-nous	-
12	WPW10171469		Screw   (Replaces: 8533859)			Immediately	$ 11.61
13	WPW10197428		Device, Combination Start (start Relay And Overload)   (Replaces: W10197428)			Immediately	$ 89.21
14	WPW10350564		Capacitor   (Replaces: W10350564)			Immediately	$ 99.49
15	WP2300868		Connector, Union   (Replaces: W10271541)			Immediately	$ 29.05
16	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
17	W10466698		Assembly, Unit Cover (bottom)				$ 103.75
18	489396		Clip				$ 11.26
19	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 381.49
20	W11127829		Motor, Condenser Fan   (Replaces: W10527155)			Immediately	$ 185.05
21	WPW10614158		Tray, Evaporator   (Replaces: W10614158)			Immediately	$ 113.18
22	W10421559		Unit, Harness		Appelez-nous	-
23	WPW10143759		Drier   (Replaces: W10771114)			Immediately	$ 30.78
24	2325479		Tube, Process		Appelez-nous	-
25	W10196321		Frame, Unit Mounting		Appelez-nous	-
26	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.93
27	WP2323198		Heater, Defrost   (Replaces: 2188175)			Immediately	$ 90.70
28	W10160407		Compressor   (Replaces: W10200250)				$ 629.92
29	W11417341		Screw   (Replaces: W10476309)				$ 14.07
30	WPW10169124		Grommet   (Replaces: 10835903)				$ 7.55
31	489340		Bolt		Appelez-nous	-
32	W10332806		Baffle, Air				$ 102.82
33	W10196313		Rail, Unit Mounting		Appelez-nous	-
34	W10334855		Control, Cover		Appelez-nous	-
35	W11035837		Electronic Control   (Replaces: W10617097)				$ 334.93
36	2323186		Box, Control				$ 107.48
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access				$ 137.25
NI	876764		Valve, Access			Immediately	$ 95.92
NI	N/P		Refrigerant Charge 5.5 Oz (r-134a)		Appelez-nous	-
NI	WP978025		Valve, Access   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access			Immediately	$ 134.49
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 21.64
