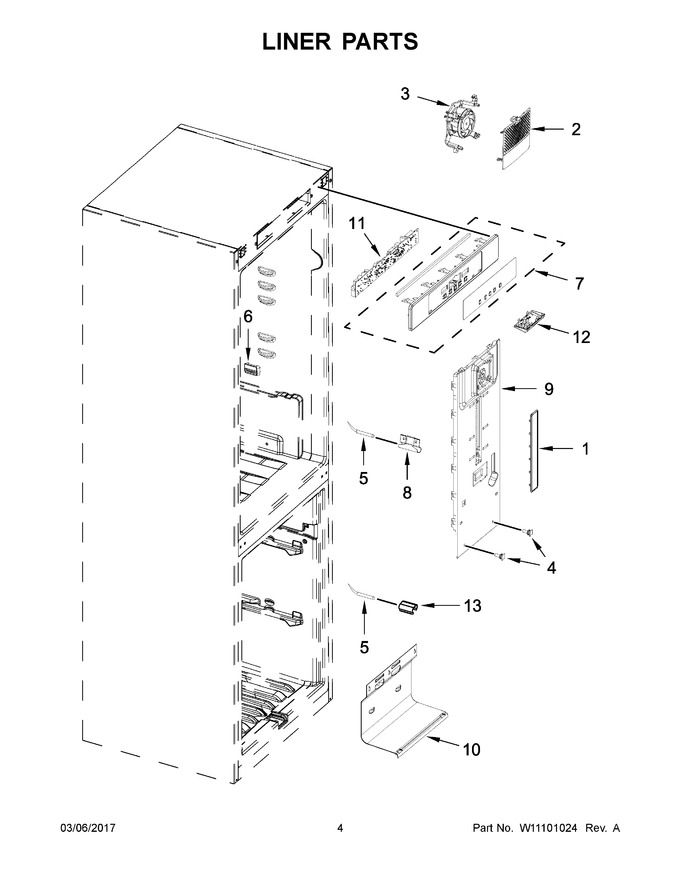

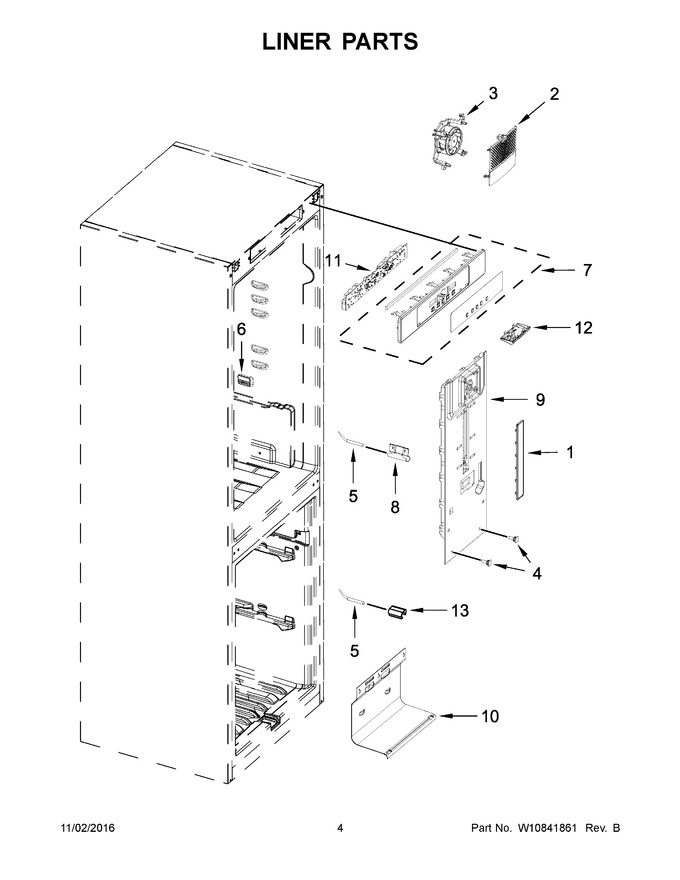

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10723974 | Plug, Evaporator Cover |
|
- | |||||
| 2 | W10721321 | Cover, Fan |
|
- | |||||
| 3 | W10848956 | Assembly, Evaporator Motor (includes Fan Blade) (Replaces: W10757324) |
|
Immediately | $ 240.44 | ||||
| 4 | W10435822 | Plug, Endcap |
|
- | |||||
| 5 | W11757152 | Sensor (Replaces: W10845802) |
|
Immediately | $ 72.39 | ||||
| 6 | W10726191 | Cover, Sensor |
|
$ 95.66 | |||||
| 7 | W10827244 | Housing, Control |
|
$ 110.35 | |||||
| 8 | W10731107 | Holder, Sensor |
|
$ 18.56 | |||||
| 9 | W10670518 | Cover, Evaporator (includes Insulation) |
|
$ 236.54 | |||||
| 10 | W10670579 | Multiflow |
|
$ 97.71 | |||||
| 11 | W11795185 | Control, Electronic (Replaces: W10786435) |
|
Immediately | $ 444.77 | ||||
| 12 | W10848958 | Assembly, Led (Replaces: W10796216) |
|
$ 180.62 | |||||
| 13 | W10843127 | Support, Freezer Sensor |
|
- |
