Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10515903 Crossbar, Compressor Special Order $ 23.21

2 W10443535 Foot, Rear In-Stock Immediately $ 7.70

3 W10513341 Wire, Ground Appelez-nous -
4 W10540525 Board, Terminal Appelez-nous -
5 W10540495 Cover, Terminal Board Special Order $ 23.94

6 W10540543 Relay Special Order $ 81.80

7 WP2214067 Protector, Motor   (Replaces: W10540536) Special Order $ 124.42

8 W10505066 Cord, Power Special Order $ 109.22

9 W11710117 Compressor   (Replaces: W10540349) Special Order $ 591.54

10 W10538494 Capacitor Special Order $ 74.00

11 W10553362 Tray, Water In-Stock Immediately $ 78.59

12 N/P Pipe, Filling (not A Serviceable Part) Appelez-nous -
13 W11757080 Valve, Drain   (Replaces: W10585788) Special Order $ 25.57

14 W10843099 Pipe, Condensate In-Stock Immediately $ 86.73

15 W10515625 Condenser Special Order $ 238.79

16 W10843041 Drier Appelez-nous -
17 W10852641 Plug   (Replaces: W10844530) Appelez-nous -
18 W10844563 Pin, Cotter Appelez-nous -
19 W10844574 Grommet, Compressor Appelez-nous -
NI N/P Refrigerant Charge 122g (r-134a) Appelez-nous -

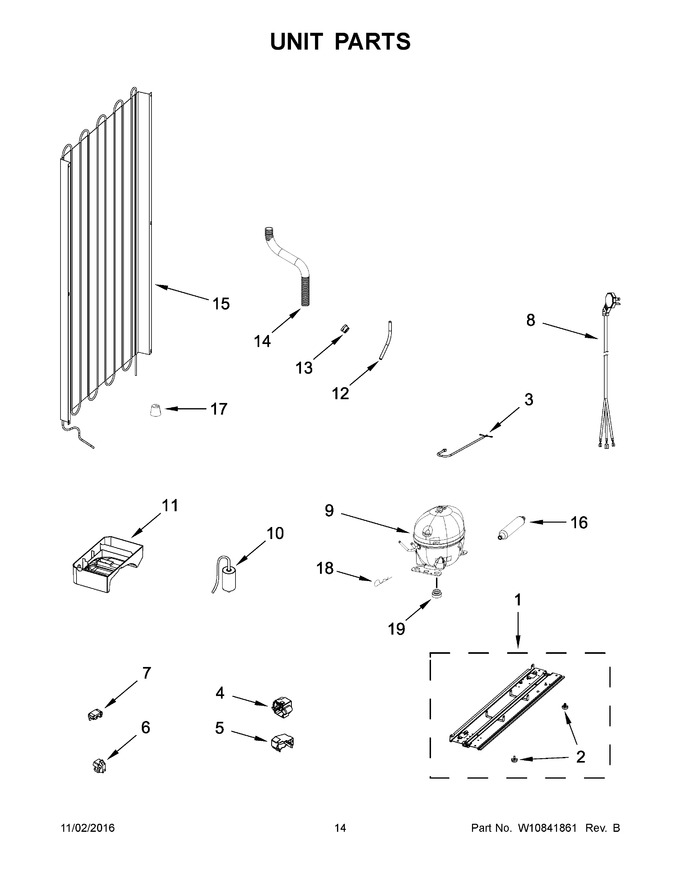

    View Diagram in Separate Window     Print Icon   Print Part List
