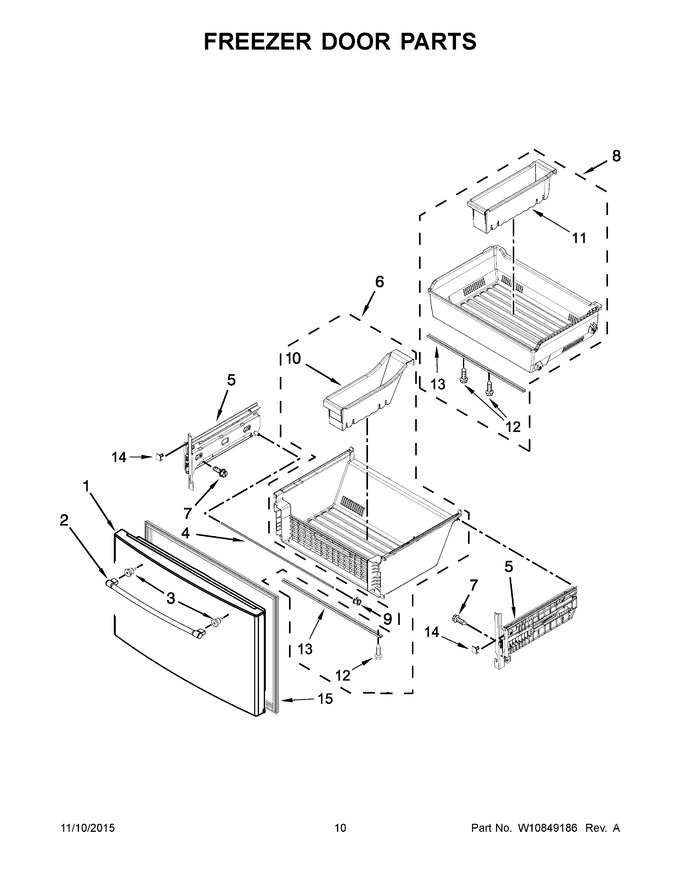

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10666171		Door, Freezer (includes Door Gasket) (white)		Appelez-nous	-
2	WPW10663448		Handle, Door (stainless)   (Replaces: W10663448)				$ 326.92
3	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
4	WPW10503522		Shaft   (Replaces: W10503522)				$ 98.10
5	W11668671		Assembly, Bracket (left Hand)   (Replaces: W10795770)			Immediately	$ 529.03
6	W10650427		Bin, Lower		Appelez-nous	-
7	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 8.78
8	W10704090		Bin, Upper				$ 181.92
9	W10852685		Clip, Shaft   (Replaces: W10709748)				$ 11.39
10	W10507444		Divider, Lower				$ 62.14
11	WPW10485654		Divider, Upper   (Replaces: W10485654)				$ 66.81
12	WP489443		Screw (stainless)   (Replaces: 489443)			Immediately	$ 8.33
13	W11677723		Support, Pan   (Replaces: W10469177)			Immediately	$ 155.10
14	WPW10485096		Stop, Pan (left Hand)   (Replaces: W10485096)				$ 83.65
15	W10638486		Gasket, Door (white)   (Replaces: W10587578)				$ 337.00
14A	WPW10485089		Stop, Pan (right Hand)   (Replaces: W10485089)				$ 86.71
15A	W10407215		Gasket, Door (black)   (Replaces: W10248748)				$ 317.99
15B	W10407216		Gasket, Door (grey)   (Replaces: W10248749)			Immediately	$ 267.66
1A	LW10666170		Door, Freezer (includes Door Gasket) (black)   (Replaces: W10666170)		Appelez-nous	-
1B	LW10666172		Door, Freezer (includes Door Gasket) (stainless)   (Replaces: W10666172)				$ 1,013.39
5A	W11668671		Assembly, Bracket (right Hand)   (Replaces: W10795768)			Immediately	$ 529.03
