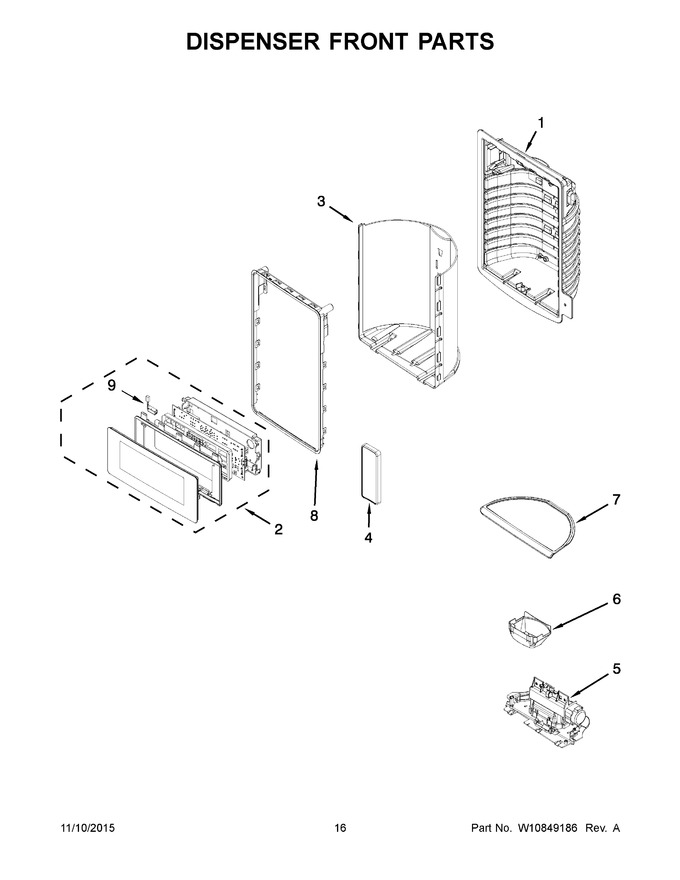

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W11325838		Assembly, User Interface   (Replaces: W10751243)		Appelez-nous	-
3	W10520867		Wall, Dispenser False (white)				$ 92.40
4	WPW10436679		Assembly, Pad (white)   (Replaces: W10436679)				$ 87.47
5	WPW10577864		Assembly, Seperator   (Replaces: W10577864)			Immediately	$ 157.84
6	WPW10435760		Guide, Ice   (Replaces: W10435760)			Immediately	$ 23.94
7	W10322872		Tray, Drip (white)		Appelez-nous	-
8	W10587907		Ring, Trim (white)				$ 29.12
9	W11290115		Assembly, Led   (Replaces: W10470750)				$ 84.45
3A	W10520869		Wall, Dispenser False (grey)				$ 121.46
4A	W10436678		Assembly, Pad (stainless)		Appelez-nous	-
7A	W10410105		Tray, Drip (grey)				$ 104.16
8A	W10587910		Ring, Trim (stainless)				$ 133.26

    View Diagram in Separate Window       Print Part List
