New Model Search:

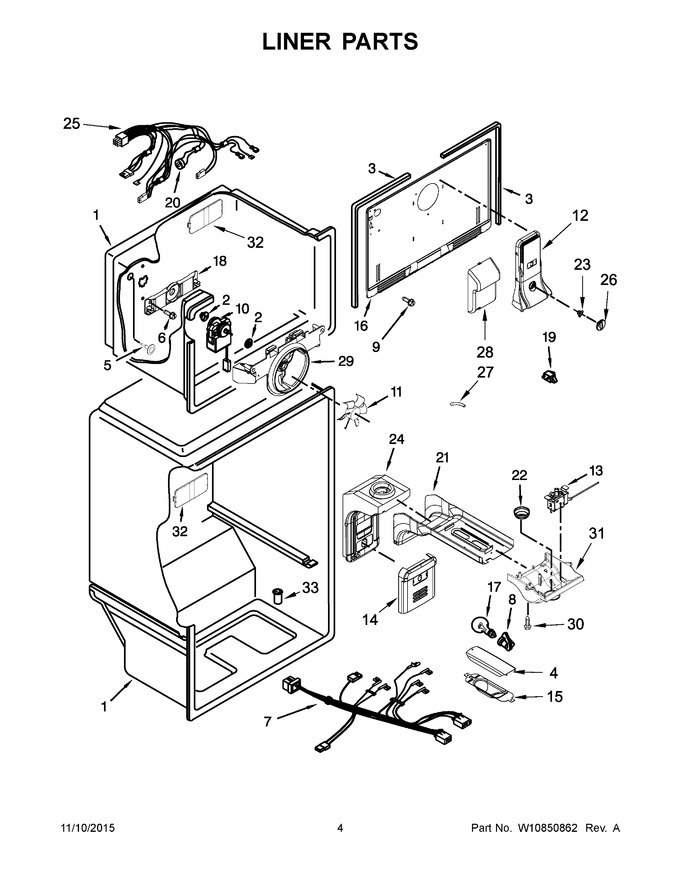

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Serviced) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 46.17 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (Replaces: 2254360) |
|
$ 28.12 | |||||
| 4 | WPW10348614 | Cover, Light (Replaces: W10348614) |
|
$ 117.96 | |||||
| 5 | WP941839 | Hole Plug (white) (Replaces: 941839) |
|
$ 8.03 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 7 | W10557788 | Wire Assembly, Control Box |
|
- | |||||
| 8 | W11447232 | Socket, Light (Replaces: W10134764) |
|
Immediately | $ 13.87 | ||||
| 9 | WPW10142283 | Screw (white) (Replaces: W10142283) |
|
$ 10.33 | |||||
| 10 | WPW10173141 | Fan Motor (Replaces: W10173141) |
|
$ 318.76 | |||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 107.61 | ||||
| 12 | W10654833 | Air Tower, Fc |
|
- | |||||
| 13 | W10866230 | Assembly, Thermostat (Replaces: W10610070) |
|
$ 221.22 | |||||
| 14 | W10609502 | Cup, Air Diffuser |
|
$ 39.89 | |||||
| 15 | W10300161 | Shield, Light |
|
Immediately | $ 96.62 | ||||
| 16 | W10617507 | Cover, Evaporator |
|
$ 218.45 | |||||
| 17 | W10716219 | Bulb, Light |
|
- | |||||
| 18 | 2254454 | Bracket, Evaporator Fan Rear |
|
Immediately | $ 75.44 | ||||
| 19 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 39.09 | ||||
| 20 | WPW10392132 | Bi-metal, Defrost (Replaces: W10392132) |
|
Immediately | $ 9.05 | ||||
| 21 | WPW10305175 | Cover, Air Diffuser (Replaces: W10305175) |
|
$ 114.36 | |||||
| 22 | W10716304 | Knob, Control |
|
- | |||||
| 23 | W10798358 | Baffle, Air Manual |
|
- | |||||
| 24 | W10830373 | Assembly, Air Diffuser |
|
- | |||||
| 25 | W10637526 | Assembly, Freezer Compartment Wire |
|
- | |||||
| 26 | W11026417 | Knob, Air Control (Replaces: W10570952) |
|
$ 91.85 | |||||
| 27 | WP2196003 | Tube, Thermostat Barrier (Replaces: W10381575) |
|
$ 8.35 | |||||
| 28 | WPW10339203 | Cover, Water Tube (Replaces: W10339203) |
|
$ 7.55 | |||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 32.47 | ||||
| 30 | WP489174 | Screw (Replaces: 489174) |
|
$ 7.30 | |||||
| 31 | W10440730 | Control Box |
|
- | |||||
| 32 | W10336009 | Cup, Screw |
|
$ 77.40 | |||||
| 33 | WP2210509 | Valve, Release (Replaces: 2210509) |
|
$ 99.15 |
