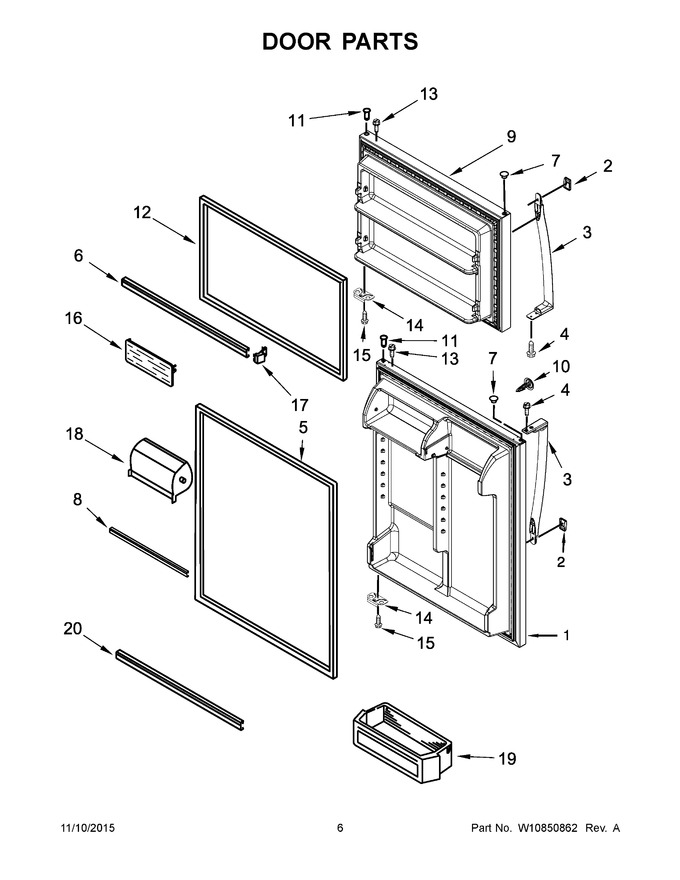

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11023679 | Refrigerator Door (includes Illustration 5) (white) (Replaces: W10599404) |
|
$ 758.35 | |||||
| 2 | WPW10672338 | Handle, Trim (white) (Replaces: W10672338) |
|
Immediately | $ 29.91 | ||||
| 3 | WPW10672333 | Handle, Door (white) (Replaces: W10672333) |
|
Immediately | $ 230.40 | ||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 5 | W10860480 | Door Gasket, Magnetic (white) (Replaces: W10692652) |
|
$ 309.74 | |||||
| 6 | W11596065 | Trim, Door (Replaces: W10720452) |
|
$ 98.26 | |||||
| 7 | WP2212648 | Plug, Hinge (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 8 | W11678258 | Trim, Door (Replaces: W10720455) |
|
$ 88.14 | |||||
| 9 | W11023679 | Freezer Door (includes Illustration 12) (white) (Replaces: W10599407) |
|
$ 758.35 | |||||
| 10 | W10830984 | Hole Plug (white) (Replaces: W10663736) |
|
$ 8.38 | |||||
| 11 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 7.55 | |||||
| 12 | W10741118 | Door Gasket, Magnetic (white) (Replaces: W10692653) |
|
$ 332.03 | |||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 15 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 16 | WP2188236 | Door, Flip (Replaces: 2188236) |
|
$ 64.38 | |||||
| 17 | WP2195916K | Cap, Door Trim End (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 18 | W11617783 | Compartment Door (Replaces: W10385897) |
|
$ 76.28 | |||||
| 19 | W10803530 | Bin, Door (Replaces: W10582649) |
|
$ 75.88 | |||||
| 20 | W10859818 | Trim, Shelf (Replaces: W10720448) |
|
- |
