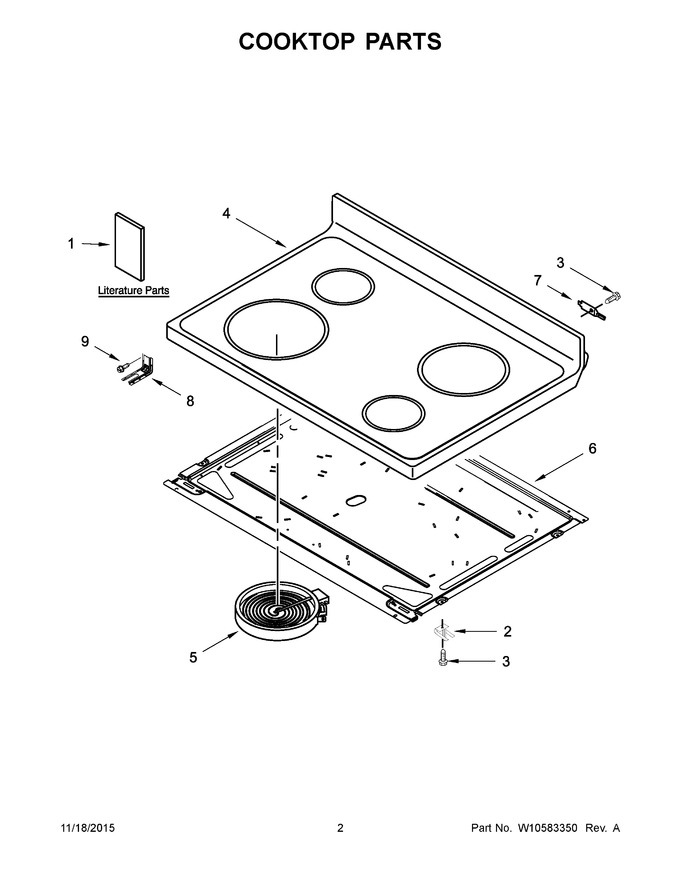

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10545226 | Installation Instructions |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 3 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 4 | W10248202 | Cooktop (white) (Replaces: W10202165) |
|
$ 603.76 | |||||
| 5 | WPW10242957 | Element, Surface (2000 Watt (left Front And Right Rear)) (Replaces: W10242957) |
|
$ 332.00 | |||||
| 6 | W11728329 | Pan, Radiant Element (Replaces: W10106409) |
|
Immediately | $ 143.49 | ||||
| 7 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 8 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 9 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 1A | W10545225 | Use And Care Guide |
|
- | |||||
| 1B | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1C | W10384447 | Tech Sheet (english) |
|
- | |||||
| 5A | W10823699 | Element, Surface (1500w) (right Front And Left Rear) (Replaces: 8523697) |
|
Immediately | $ 169.95 | ||||
| NI | W11171875 | Miscellaneous Parts, Harness, Wire (main) (Replaces: W10251766) |
|
- | |||||
| NI | W10273585 | Miscellaneous Parts, Harness, Wire (cooktop Left) |
|
- | |||||
| NI | W10273584 | Miscellaneous Parts, Harness, Wire (cooktop Right) |
|
$ 134.76 | |||||
| NI | W11172424 | Miscellaneous Parts, Harness, Sensor (Replaces: W10083650) |
|
$ 113.78 | |||||
| NI | 3184020 | Miscellaneous Parts, Wire, Ground (Replaces: 8523279) |
|
$ 86.92 | |||||
| NI | 313660 | Miscellaneous Parts, Clip, Ground Wire |
|
- | |||||
| NI | WPW10144763 | Miscellaneous Parts, Tie, Cable (Replaces: W10144763) |
|
$ 7.93 | |||||
| NI | WP3196174 | Miscellaneous Parts, Screw (Replaces: 3196174) |
|
Immediately | $ 8.44 | ||||
| NI | W11244557 | Miscellaneous Parts, Screw (Replaces: 3196173) |
|
$ 14.29 |
