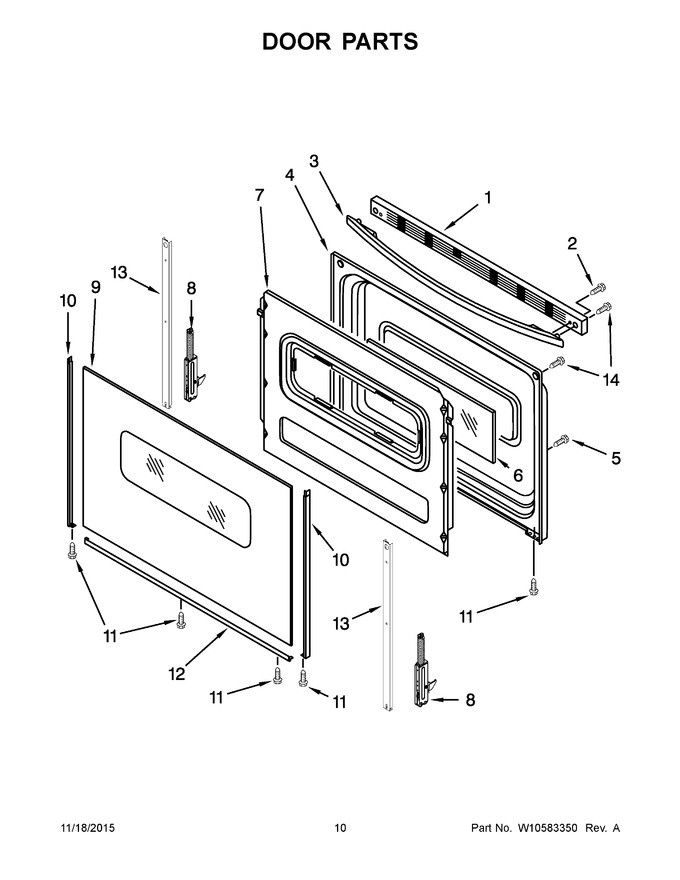

01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Drawer Parts
06 - Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10016370 | Trim, Door (top) (white) |
|
$ 79.85 | |||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 11.03 | ||||
| 3 | W10202219 | Handle, Oven Door |
|
$ 265.19 | |||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 6 | W11399628 | Glass, Inner (Replaces: W10620754) |
|
$ 171.68 | |||||
| 7 | W11685635 | Retainer, Insulation (Replaces: 9761501) |
|
$ 188.29 | |||||
| 8 | WPW10299227 | Hinge, Passive (without Spring) (Replaces: W10299227) |
|
Immediately | $ 70.74 | ||||
| 9 | WPW10118454 | Glass, Outer Door (white) (Replaces: W10118454) |
|
$ 324.91 | |||||
| 10 | WP8523172 | Trim, Side (white (left)) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 11 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 12 | W11594186 | Trim, Door (bottom) (white) (Replaces: 8523175) |
|
Immediately | $ 61.37 | ||||
| 13 | W11502236 | Strap, Door (Replaces: W10544179) |
|
Immediately | $ 27.68 | ||||
| 14 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 10A | WP8523166 | Trim, Side (white (right)) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 8A | WPW10299225 | Hinge, Active (Replaces: W10299225) |
|
Immediately | $ 52.34 |
