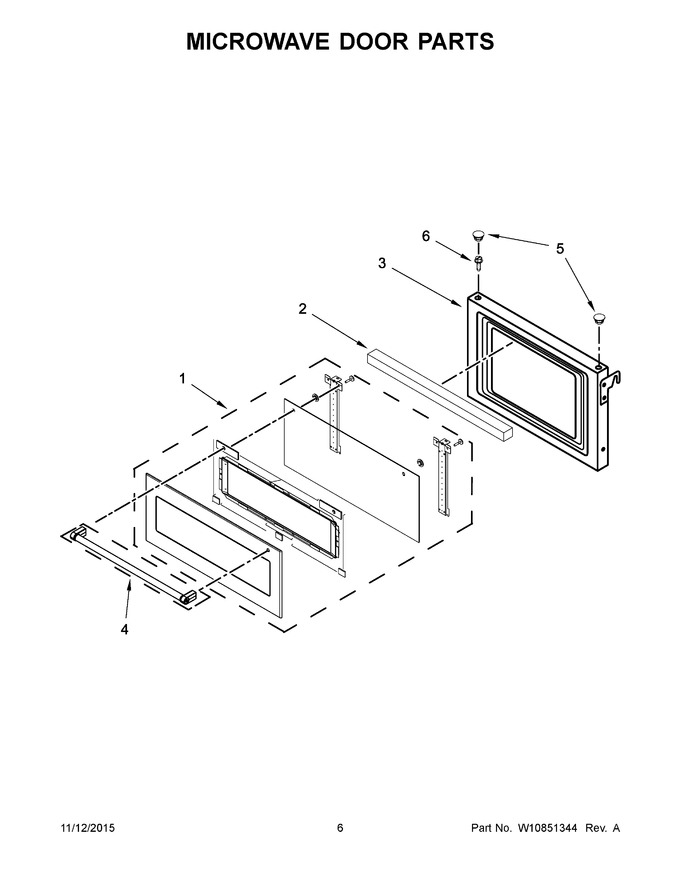

04 - Microwave Door Parts


05 - Internal Microwave Parts


06 - Oven Parts


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10783076		Assembly, Door (white)   (Replaces: W10615381)				$ 457.59
2	W10359769		Foam, Handle				$ 14.06
3	W10737653		Assembly, Inner Door				$ 392.22
4	W11525064		Assembly, Handle (stainless)   (Replaces: W10640874)				$ 227.60
5	W11756840		Cap, Screw   (Replaces: 8304588BL)				$ 11.75
6	WP7101P246-60		Screw   (Replaces: W10143304)				$ 7.75
1A	W10783074		Assembly, Door (black)   (Replaces: W10615380)				$ 458.85
1B	W10783078		Assembly, Door (stainless)   (Replaces: W10615379)				$ 381.45
