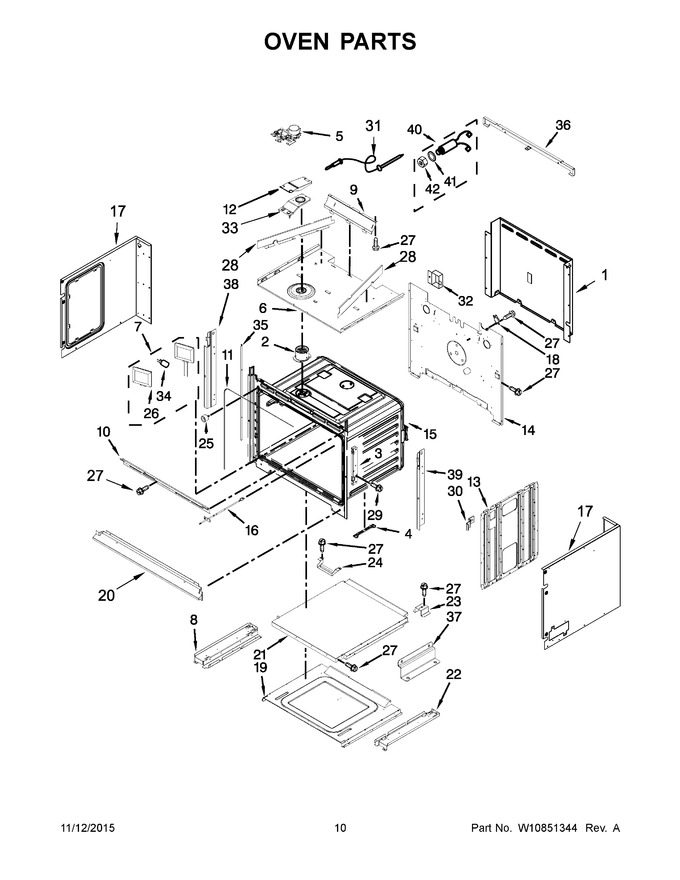

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10519707 | Cover, Back Duct |
|
$ 74.08 | |||||
| 2 | W11240525 | Tube, Vent (Replaces: W10282946) |
|
$ 25.54 | |||||
| 3 | W11613828 | Receiver, Hinge (Replaces: W10616802) |
|
Immediately | $ 57.49 | ||||
| 4 | W11240831 | Spacer, Base (Replaces: W10618102) |
|
$ 17.25 | |||||
| 5 | W10883049 | Latch, Motorized (Replaces: W10314880) |
|
Immediately | $ 306.46 | ||||
| 6 | W10813744 | Chassis, Top |
|
- | |||||
| 7 | WPW10519866 | Assembly, Oven Light (Replaces: W10519866) |
|
$ 96.33 | |||||
| 8 | W10283020 | Support, Base (left) |
|
- | |||||
| 9 | W10904163 | Deflector, Blower (Replaces: W10641572) |
|
Immediately | $ 169.79 | ||||
| 10 | W10495155 | Vent, Center 27 |
|
$ 91.10 | |||||
| 11 | W10856596 | Gasket (Replaces: W10282961) |
|
Immediately | $ 105.26 | ||||
| 12 | W10616810 | Cover, Vent Exhaust |
|
$ 69.95 | |||||
| 13 | W10318190 | Side, Chassis |
|
$ 117.20 | |||||
| 14 | W10813734 | Back, Chassis |
|
- | |||||
| 15 | N/P | Liner, Oven (not Serviceable) |
|
- | |||||
| 16 | WP74008369 | Probe, Sensor (Replaces: 7430P043-60) |
|
Immediately | $ 132.94 | ||||
| 17 | W10655466 | Chassis, Combo Side (left) |
|
$ 80.62 | |||||
| 18 | WP4449751 | Thermostat (tod) (Replaces: 4449751) |
|
Immediately | $ 111.84 | ||||
| 19 | W10282901 | Base, Chassis |
|
$ 177.43 | |||||
| 20 | WPW10327375 | Assembly, Bottom Vent (black) (Replaces: W10327375) |
|
$ 435.99 | |||||
| 21 | WPW10283008 | Chassis, Bottom Duct (Replaces: W10283008) |
|
$ 220.05 | |||||
| 22 | W10283021 | Support, Base (right) |
|
- | |||||
| 23 | W10213759 | Support, Air Channel |
|
- | |||||
| 24 | W10351308 | Spacer, Chassis Bottom Duct |
|
$ 58.73 | |||||
| 25 | WPW10351278 | Bumper & Screw (Replaces: W10351278) |
|
$ 11.01 | |||||
| 26 | WPW10519866 | Lens, Light (Replaces: W10472386) |
|
$ 96.33 | |||||
| 27 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 28 | W10681156 | Deflector, Chassis |
|
- | |||||
| 29 | WPW10254050 | Screw (Replaces: W10254050) |
|
$ 9.22 | |||||
| 30 | W11376811 | Spacers, Front (Replaces: W10618106) |
|
$ 17.15 | |||||
| 31 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 92.12 | ||||
| 32 | W11819303 | Cover, Connector (Replaces: 8285593) |
|
- | |||||
| 33 | W10616809 | Base, Vent Exhaust |
|
$ 32.24 | |||||
| 34 | WPW10472384 | Bulb, Light (Replaces: W10472384) |
|
Immediately | $ 92.48 | ||||
| 35 | W10536162 | Trim, Side (black (left)) (Replaces: W10344483) |
|
$ 38.73 | |||||
| 36 | W10283023 | Support, Crossbar |
|
- | |||||
| 37 | W10283025 | Side, Bracket |
|
- | |||||
| 38 | W10360517 | Rail, Side (left) |
|
$ 84.28 | |||||
| 39 | W11461034 | Rail, Side (right) (Replaces: W10360519) |
|
$ 61.32 | |||||
| 40 | W11220388 | Jack, Meat Probe (Replaces: W10696226) |
|
Immediately | $ 69.63 | ||||
| 41 | WP9755547 | Washer, Lock (Replaces: 9755547) |
|
$ 6.41 | |||||
| 42 | WP9755546 | Nut, Hidden (Replaces: 9755546) |
|
$ 7.30 | |||||
| 17A | W10351301 | Chassis, Combo Side (right) |
|
- | |||||
| 20A | W10506349 | Assembly, Bottom Vent (white) |
|
$ 161.14 | |||||
| 20B | WPW10351280 | Assembly, Bottom Vent (stainless) (Replaces: W10351280) |
|
$ 264.15 | |||||
| 35A | W10536162 | Trim, Side (black (right)) (Replaces: W10344482) |
|
$ 38.73 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10520716 | Insulation, Wrap |
|
- | |||||
| NI | W11688333 | Insulation, Back (Replaces: W10282945) |
|
- |
