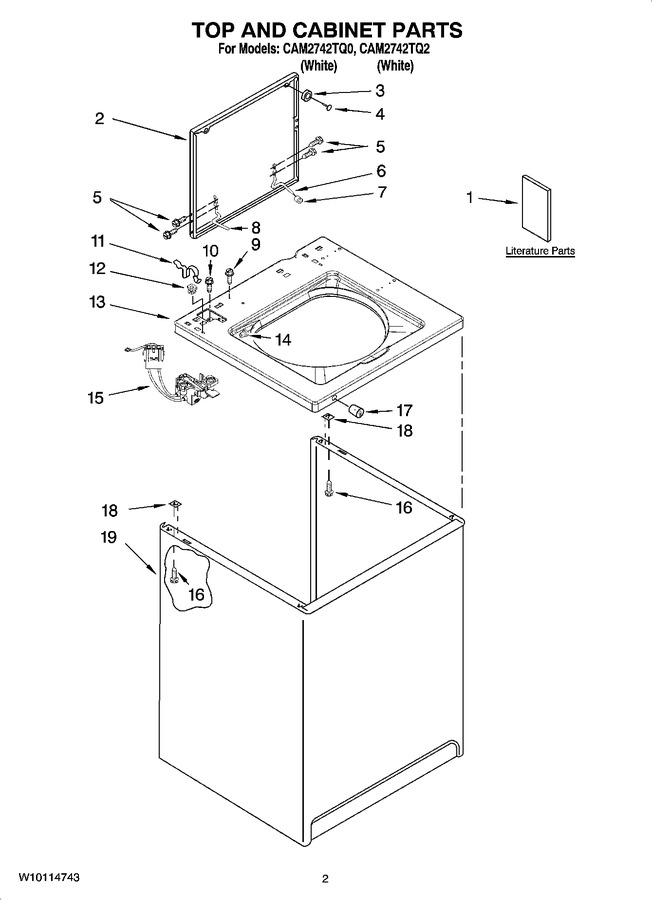

01 - Top And Cabinet Parts


02 - Control Panel Parts


03 - Meter Case Parts


04 - Rear Panel Parts


05 - Agitator, Basket And Tub Parts


06 - Brake, Clutch, Gearcase, Motor And Pump Parts


07 - Machine Base Parts


08 - Wiring Harness Parts


09 - Brake And Drive Tube Parts


10 - Gearcase Parts


11 - Water System Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8316532		Instructions, Coin Kit		Appelez-nous	-
1	W10114743		Repair Parts List		Appelez-nous	-
1	W10172194		Energy Guide		Appelez-nous	-
1	W10135801		Wiring Diagram		Appelez-nous	-
2	W10173243		Lid		Appelez-nous	-
3	356908		Bumper, Lid				$ 8.35
4	WP356907		Rivet, Plastic   (Replaces: 356907)				$ 7.40
5	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: W10119828)			Immediately	$ 7.19
6	WP54583		Hinge, Lid (r.h.)   (Replaces: 54583)				$ 29.56
7	19119		Bumper, Lid Hinge				$ 5.75
8	WP8524784		Hinge, Lid (l.h.)   (Replaces: 8524784)				$ 33.94
9	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.95
10	3400611		Screw, Lid Switch		Appelez-nous	-
11	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 7.80
12	358473		Nut, Push-in (2)				$ 5.84
13	W10114733		Top		Appelez-nous	-
14	WP21258		Bearing, Lid Hinge (2)   (Replaces: 21258)			Immediately	$ 7.63
15	WP8054980		Switch, Lid   (Replaces: 8054980)			Immediately	$ 154.77
16	WP3390631		Screw, 10-16 X 3/8   (Replaces: 3390631)				$ 7.82
17	387371		Plug, Lock				$ 11.36
18	WP62750		Spacer, Cabinet To Top (4)   (Replaces: 62750)			Immediately	$ 7.69
19	63424		Cabinet				$ 370.02
