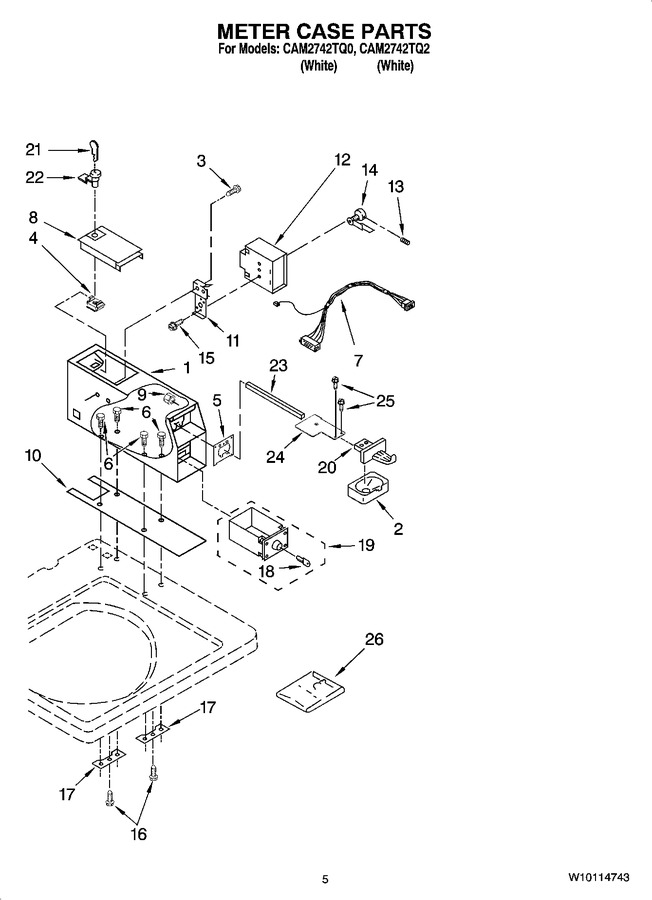

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10461200 | Meter Case (Replaces: 3406994) |
|
Immediately | $ 402.38 | ||||
| 2 | WP385421 | Coin Funnel (Replaces: 385421) |
|
Immediately | $ 77.91 | ||||
| 3 | 339805 | Screw, 10-32 X 3/16 |
|
$ 14.06 | |||||
| 4 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 9.09 | |||||
| 5 | 279950 | Plate, Adapter (includes Item 2) (Replaces: 3954761) |
|
Immediately | $ 28.89 | ||||
| 6 | W11715721 | Bolt, Meter Case 5/16 - 24 X 1 (4) (Replaces: 3349065) |
|
$ 7.48 | |||||
| 7 | W10138351 | Harness, Timer |
|
$ 204.80 | |||||
| 8 | W11283272 | Door, Service (Replaces: 3351136) |
|
$ 111.17 | |||||
| 9 | WP3400029 | Nut, Adapter Plate (3) (Replaces: 3400029) |
|
Immediately | $ 8.19 | ||||
| 10 | WP3954812 | Cushion, Case (Replaces: 3954812) |
|
$ 32.66 | |||||
| 11 | 385575 | Bracket, Timer |
|
$ 94.31 | |||||
| 12 | WPW10112081 | Timer, 60 Hz. (Replaces: W10112081) |
|
Immediately | $ 455.28 | ||||
| 13 | 98654 | Screw, Set (2) |
|
- | |||||
| 14 | 385571 | Clutch, Timer |
|
$ 42.89 | |||||
| 14 | WP354987 | E-ring (Replaces: 354987) |
|
Immediately | $ 12.34 | ||||
| 15 | WP3400064 | Screw, Timer (Replaces: 3400064) |
|
$ 7.30 | |||||
| 16 | W10841059 | Screw, 10-16 X 3/4 (Replaces: 98445) |
|
- | |||||
| 17 | 3347825 | Plate, Mounting |
|
- | |||||
| 19 | W11190039 | Money Box (includes Item 18) (Replaces: 8316525) |
|
Immediately | $ 178.05 | ||||
| 20 | W11126319 | Coin Chute (Replaces: 8316520) |
|
Immediately | $ 310.89 | ||||
| 21 | WPW10114740 | Key, Service Door (Replaces: W10114740) |
|
$ 137.49 | |||||
| 22 | W11315637 | Security Lock & Cam Assembly (Replaces: 8316526) |
|
Immediately | $ 40.47 | ||||
| 23 | WP8576635 | Bolt, Coin Chute (Replaces: 8318517) |
|
Immediately | $ 78.95 | ||||
| 24 | W11318367 | Extension (Replaces: 8316522) |
|
Immediately | $ 44.56 | ||||
| 25 | 3400086 | Screw, 10-32 X 3/8 |
|
$ 12.77 | |||||
| 26 | 8316524 | Kit, Chute Decal |
|
- |
