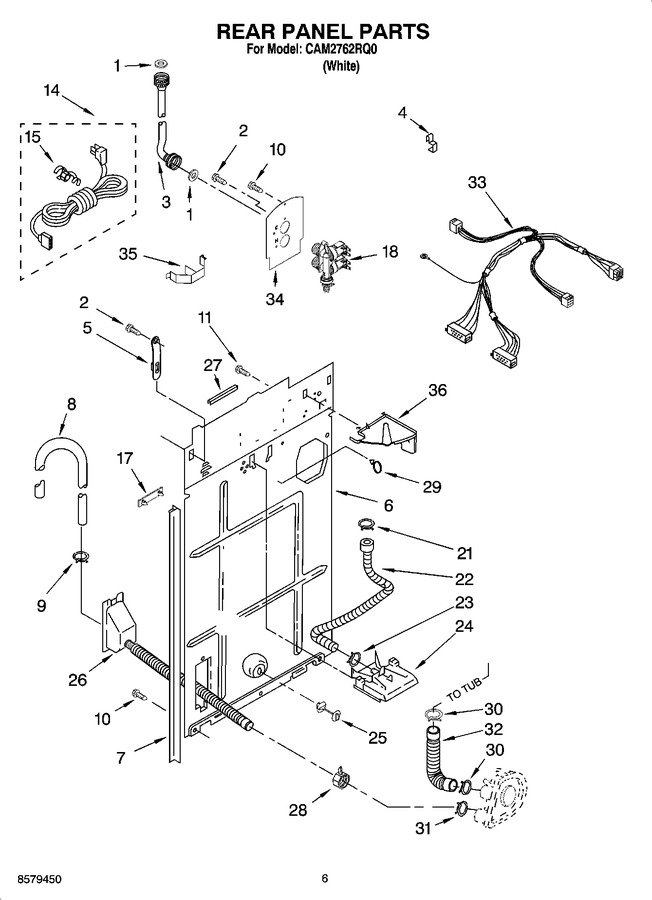

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) 1-1/16 X 5/8 (Replaces: 3976300) |
|
$ 8.16 | |||||
| 2 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 3 | WP3949381 | Hose, Water Inlet (red Coupler) (Replaces: 3949381) |
|
$ 50.10 | |||||
| 3 | WP3949380 | Hose, Water Inlet (blue Coupler) (Replaces: 3949380) |
|
$ 37.61 | |||||
| 4 | 8282518 | Clip, Harness |
|
- | |||||
| 5 | WP8568314 | Strap, Console (2) (Replaces: 8568314) |
|
$ 8.17 | |||||
| 6 | 285929 | Panel, Rear (includes Illus. 5,15 & 35) (Replaces: 8541649) |
|
$ 340.71 | |||||
| 7 | WP62747 | Pad, Rear Panel (2) (Replaces: 3354204) |
|
$ 27.57 | |||||
| 8 | 285666 | Hose, Drain (9`- 9``) (not Included) (Replaces: 661577) |
|
Immediately | $ 62.34 | ||||
| 8 | WP96743 | Hose, Drain (4`) (Replaces: 96743) |
|
$ 106.08 | |||||
| 8 | 285702 | Extension, Drain Hose (21 Inches) (not Included) (Replaces: 3357090) |
|
Immediately | $ 63.94 | ||||
| 9 | WP371502 | Clamp, Hose (Replaces: 371507) |
|
$ 12.31 | |||||
| 10 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 8.25 | |||||
| 11 | WP3351614 | Screw, 10-24 X 3/8 (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 14 | 285928 | Cord, Power (Replaces: 3359548) |
|
$ 137.67 | |||||
| 15 | 3952821 | Strain Relief, Power Cord To Rear Panel |
|
- | |||||
| 17 | 389379 | Retainer, (2) Side/feature Panel |
|
$ 5.84 | |||||
| 18 | WP3979346 | Valve, Water Inlet & Thermistor Assy. (Replaces: 3979347) |
|
Immediately | $ 76.88 | ||||
| 21 | WP596669 | Clamp, Hose (Replaces: 301958) |
|
Immediately | $ 8.82 | ||||
| 22 | WP8317926 | Hose, Vacuum Break (Replaces: 8317974) |
|
Immediately | $ 24.87 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 370450) |
|
Immediately | $ 8.82 | ||||
| 24 | WP3360977 | Break, Vacuum (Replaces: 387606) |
|
Immediately | $ 50.46 | ||||
| 25 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 19.85 | ||||
| 26 | WPW10358149 | Drain Hose Assembly (includes Illus. 28) (Replaces: 8317940) |
|
Immediately | $ 48.16 | ||||
| 27 | 303294 | Edge Protector (2) |
|
- | |||||
| 28 | 3976395 | Restraint, Hose |
|
$ 11.96 | |||||
| 29 | 8559320 | Restraint, Hose |
|
$ 48.14 | |||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 8.58 | ||||
| 31 | WP356138 | Clamp, Hose (Replaces: 3366912) |
|
Immediately | $ 8.52 | ||||
| 32 | 285871 | Hose, Pump To Tub (includes Illus. 30) (Replaces: 3951449) |
|
Immediately | $ 28.99 | ||||
| 33 | 3957379 | Harness, Timer |
|
$ 82.15 | |||||
| 34 | 285930 | Plate, Mixing Valve (Replaces: 8541624) |
|
$ 78.29 | |||||
| 35 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 36 | 3954579 | Miscellaneous Parts Bag |
|
- | |||||
| 36 | 8539874 | Shield, Suds |
|
$ 7.01 |
