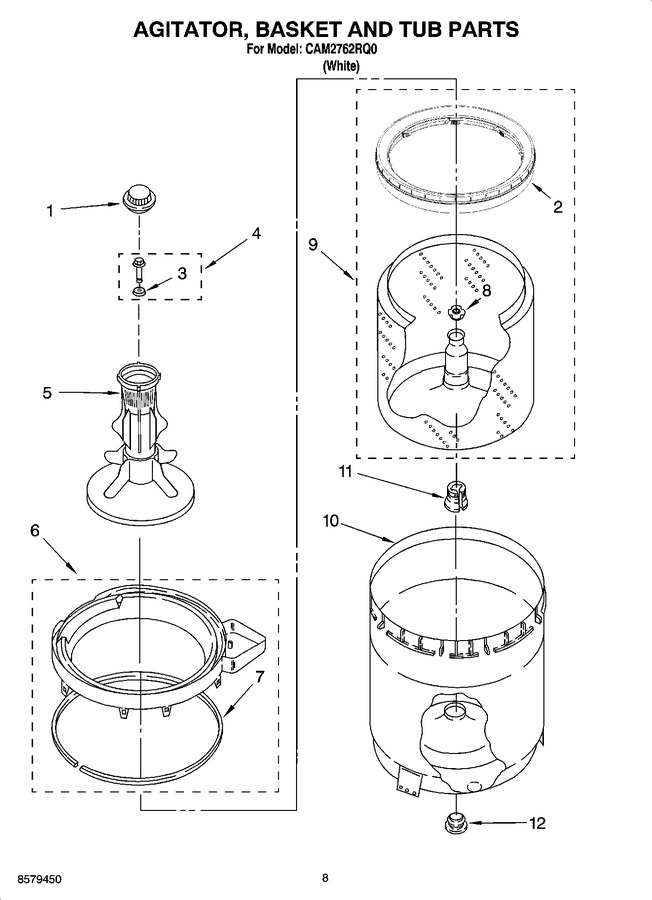

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3352483 | Cap, Agitator (Replaces: 3352483) |
|
$ 59.19 | |||||
| 2 | WP387240 | Balance Ring (Replaces: 8519788) |
|
Immediately | $ 182.05 | ||||
| 3 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.09 | ||||
| 4 | WP358237 | Screw & Washer (5-16-24 X 1) (Replaces: 358237) |
|
Immediately | $ 8.86 | ||||
| 5 | WPW10131112 | Agitator (Replaces: 63377) |
|
Immediately | $ 124.13 | ||||
| 6 | W10880720 | Tub Ring & Gasket (Replaces: 8528150) |
|
Immediately | $ 222.23 | ||||
| 7 | WP3976308 | Gasket, Tub Ring (Replaces: 3976308) |
|
Immediately | $ 28.25 | ||||
| 8 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.89 | ||||
| 9 | W10389329 | Basket & Balance Ring (Replaces: 8526017) |
|
Immediately | $ 318.45 | ||||
| 10 | 63849 | Tub |
|
$ 291.70 | |||||
| 11 | WP389140 | Block, Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 12 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 9.18 |
