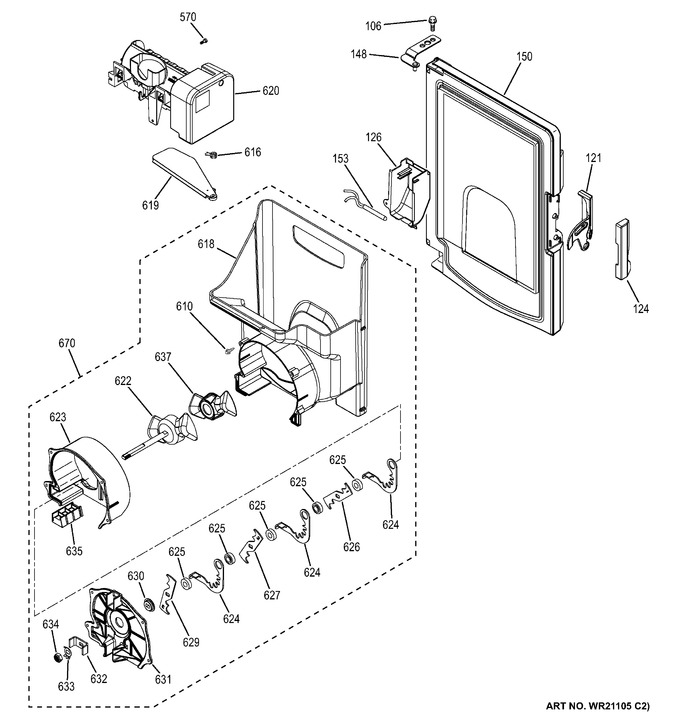

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
106	WR01X11054		Scr 8-18 Flp 1/2 S		Appelez-nous	-
121	WR11X10031		Latch Icebox Door		Appelez-nous	-
124	WR02X23032		Cover Latch		Appelez-nous	-
126	WR17X13067		Cover Am Im Harness		Appelez-nous	-
148	WR13X10972		Hinge Top Door Icebox		Appelez-nous	-
150	WR78X25914		Door Icebox Foam Asm		Appelez-nous	-
153	WR55X11142		Sensor Temperature		Appelez-nous	-
570	WR1X1757		Scr 8-18 Hxw 1 1/4s		Appelez-nous	-
610	WR01X11043		Boss Scr 10-14.5 1/2 Ice		Appelez-nous	-
616	WR29X10112		Spring Feeler Arm		Appelez-nous	-
618	WR29X20013		Bucket Ice		Appelez-nous	-
619	WR29X10110		Arm Feeler Im		Appelez-nous	-
620	WG03F07552		Ice Maker Asm-for Door   (Replaces: WR30X10160)			Immediately	$ 184.41
622	WR02X13642		Agitator Asm		Appelez-nous	-
623	WR17X13066		Housing Ice Crusher		Appelez-nous	-
624	WR02X13644		Blade Stationary		Appelez-nous	-
625	WR02X13654		Spacer Crusher		Appelez-nous	-
626	WR02X13650		Moving Blade Crusher		Appelez-nous	-
627	WR02X13651		Moving Blade Crusher		Appelez-nous	-
629	WR02X13652		Moving Blade Crusher		Appelez-nous	-
630	WR02X13653		Spacer Crusher End		Appelez-nous	-
631	WR29X20012		Cover Crusher		Appelez-nous	-
632	WR02X13643		Coupling Bucket		Appelez-nous	-
633	WR01X11018		Washer Lock		Appelez-nous	-
634	WR01X11025		Nylon Ins Locknut 3/8-24		Appelez-nous	-
635	WR02X13649		Holder Stationary Blade		Appelez-nous	-
637	WR02X13681		Insert Auger Agitator		Appelez-nous	-
670	WR30X10174		Ice Bucket & Crusher		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
