Diagram # Part Number Description Series Availability Ships Price Add to Cart
240 WR50X10109 Thermostat Defrost Ff Appelez-nous -
621 WR02X10518 Holder Element Appelez-nous -
636 WR02X13678 Holder Element Asm Appelez-nous -
685 WR1X1804 Scr 8-18 Ab Hxw 3/4 Wh Appelez-nous -
704 WR01X11061 Scr 8-18 Hi/lo Hwx 3/4 Appelez-nous -
705 WR02X13731 Gasket Ff Fan Front Appelez-nous -
709 WR24X10292 Boot Fan Ff Motor Appelez-nous -
716 WR60X10356 Fan Motor Dc Ff Evap Appelez-nous -
719 WR55X11152 Sensor Temperature Appelez-nous -
720 WR17X22149 Duct Tower Asm Ff Appelez-nous -
721 WR17X13243 Diverter & Badge Asm Appelez-nous -
728 WR85X10154 Evap & Tube Asm Ff Appelez-nous -
730 WR17X13091 Trough Drain Ff Appelez-nous -
731 WR51X10133 Heater Conduction Ff Appelez-nous -
756 WR17X13048 Cover Connector Ff Fan Appelez-nous -
757 WR23X23626 Heater Harness Ff Appelez-nous -
761 WR51X10132 Heater Def Asm Ff Appelez-nous -
799 WR17X23763 Evap Cover Asm Ff Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

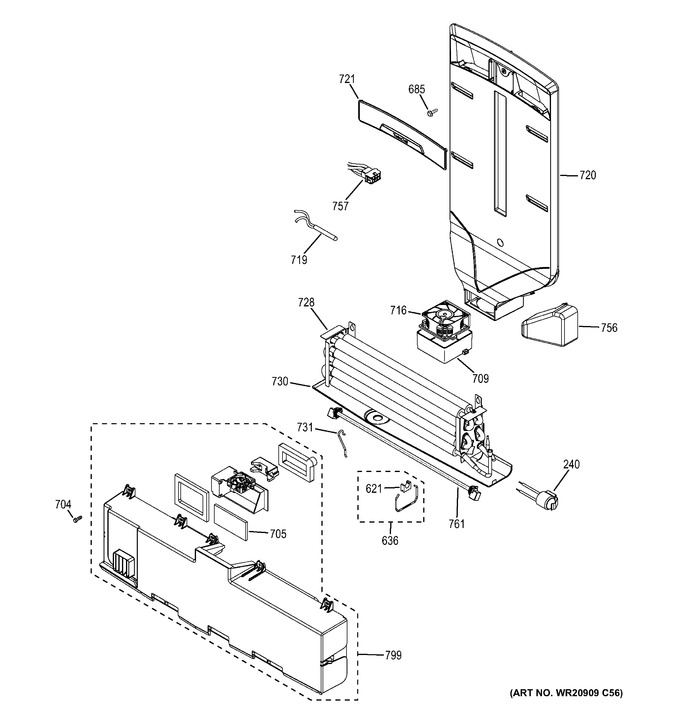

Diagram for CFE28USHCSS
