01 - Cover Sheet
02 - Bulkhead Parts

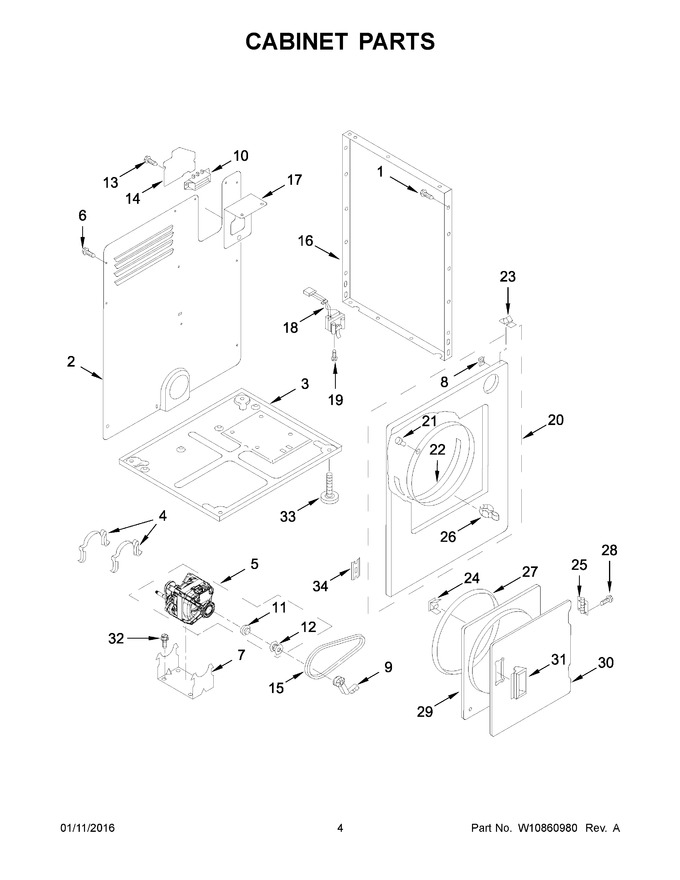

03 - Cabinet Parts
04 - Top And Console Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 2 | 280050 | Panel, Rear (Replaces: 695201) |
|
- | |||||
| 3 | WP348726 | Base Assembly (Replaces: 348726) |
|
$ 292.16 | |||||
| 4 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 5 | WPW10448901 | Motor, Main Drive (60 Hz) (Replaces: W10396037) |
|
Immediately | $ 343.16 | ||||
| 6 | W10850756 | Screw (Replaces: 8533974) |
|
$ 8.20 | |||||
| 7 | 696541 | Base, Motor |
|
$ 97.86 | |||||
| 8 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 9 | WP691366 | Idler Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 10 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 11 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 139.08 | ||||
| 12 | 8066051 | Pulley, Motor |
|
$ 118.78 | |||||
| 13 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 14 | W10509545 | Cover, Terminal Block |
|
- | |||||
| 15 | 3394652 | Belt, Drive (Replaces: 8066064) |
|
Immediately | $ 52.32 | ||||
| 16 | 348705 | Panel, Side (white) |
|
$ 115.02 | |||||
| 17 | 279304 | Support, Terminal Block (Replaces: 690259) |
|
- | |||||
| 18 | WP3406105 | Door Switch Assembly (Replaces: 3406104) |
|
Immediately | $ 36.90 | ||||
| 19 | WP3395530 | Screw (Replaces: 697773) |
|
$ 8.57 | |||||
| 20 | 280044 | Panel, Front (white) (Replaces: 8066229) |
|
$ 335.16 | |||||
| 21 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 23.55 | |||||
| 22 | 279264 | Seal And Bearing Assembly (Replaces: 8066123) |
|
Immediately | $ 85.45 | ||||
| 23 | WP345670 | Lock Top (Replaces: 345670) |
|
Immediately | $ 8.09 | ||||
| 24 | WP3389441 | Assembly, Door Catch (Replaces: 3389441) |
|
Immediately | $ 7.29 | ||||
| 25 | WP348023 | Hinge And Pin Assembly (Replaces: 348023) |
|
$ 9.32 | |||||
| 26 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 27 | W11613302 | Seal, Door (Replaces: W10823581) |
|
$ 56.31 | |||||
| 28 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 29 | 280077 | Door, Rear (Replaces: 695656) |
|
$ 207.46 | |||||
| 30 | WP348205 | Door, Front (white) (Replaces: 348205) |
|
Immediately | $ 154.76 | ||||
| 31 | 8562104 | Handle, Door |
|
$ 72.32 | |||||
| 32 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 33 | WPW10001130 | Foot, Front (Replaces: W10001130) |
|
Immediately | $ 7.80 | ||||
| 34 | W10854425 | Clip, Front Panel (Replaces: W10775448) |
|
Immediately | $ 16.34 |
