01 - Cover Sheet
02 - Bulkhead Parts
03 - Cabinet Parts

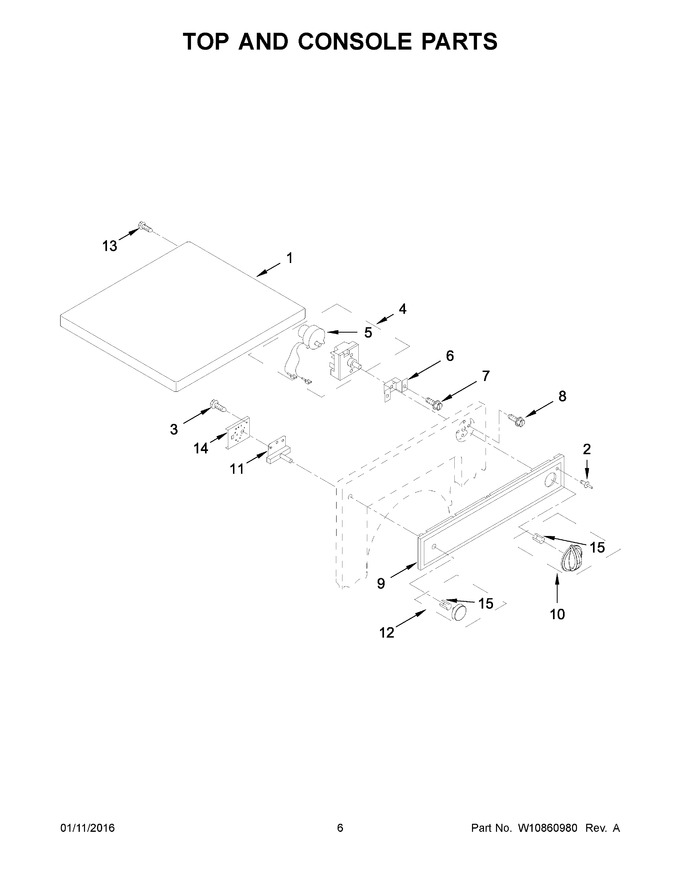

04 - Top And Console Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 345703 | Top (white) |
|
$ 261.58 | |||||
| 2 | 307563 | Rivet, Pop |
|
- | |||||
| 3 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 4 | WP8563882 | Timer, 60 Hz. (Replaces: 8563882) |
|
$ 382.32 | |||||
| 5 | N/P | Timer Motor (not Serviceable) |
|
- | |||||
| 6 | 348171 | Bracket, Timer |
|
- | |||||
| 7 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 8 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 9 | W10772596 | Panel, Control |
|
- | |||||
| 10 | 8544955 | Assembly, Timer Knob (white) |
|
$ 41.86 | |||||
| 11 | WPW10503561 | Switch, Push-to-start (Replaces: W10503561) |
|
Immediately | $ 39.45 | ||||
| 12 | WP8544939 | Assembly, Push-to-start Knob (white) (Replaces: 8544939) |
|
$ 52.44 | |||||
| 13 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 14 | 3406860 | Bracket, Front Panel |
|
- | |||||
| 15 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 |
