SELECT A DIAGRAM

01 - Cover Sheet

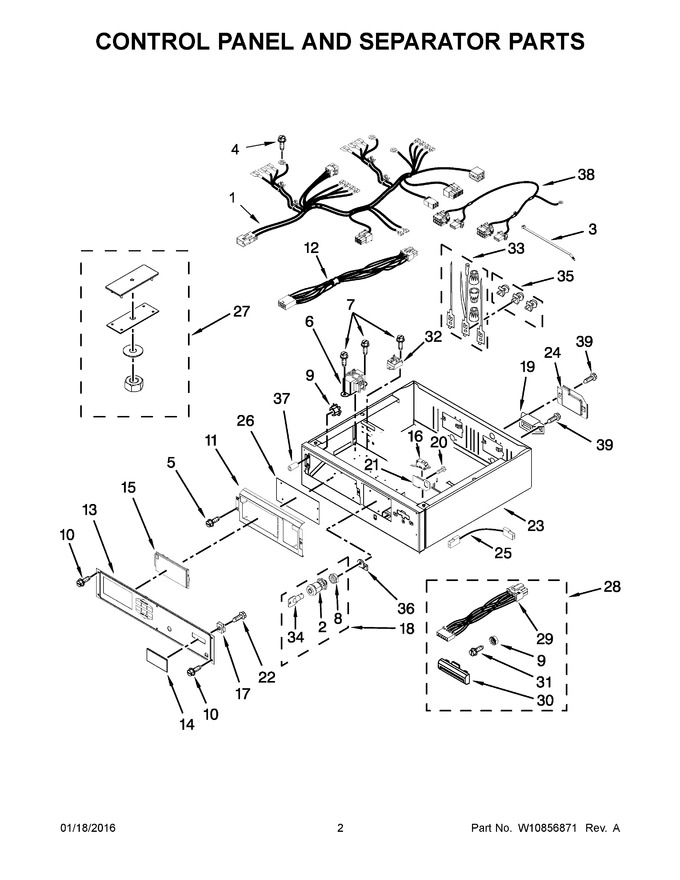

02 - Control Panel And Separator Parts


03 - Lower Cabinet And Front Panel Parts


04 - Upper Cabinet And Front Panel Parts


05 - Door Parts


06 - Upper And Lower Bulkhead Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10807485		Harness, Collar		Appelez-nous	-
2	W11395752		Nut, Hex   (Replaces: W10139762)				$ 13.04
3	WPW10155270		Cable Tie   (Replaces: W10155270)				$ 6.17
4	W10850756		Screw   (Replaces: W10773242)				$ 7.76
5	W10756178		Screw   (Replaces: W10140652)				$ 5.99
6	WPW10133285		Transformer 120vac To 22.5vac   (Replaces: W10133285)				$ 204.48
7	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.82
8	WPW10133264		Nut, Hex   (Replaces: W10177242)				$ 139.02
9	WPW10139046		Nut   (Replaces: W10139046)				$ 8.79
10	WPW10131119		Screw   (Replaces: W10386302)				$ 6.95
11	W10657185		Plate, Control Mounting		Appelez-nous	-
12	W10111027		Jumper, Transformer				$ 45.81
13	W10858316		Facia Console   (Replaces: W10678216)				$ 354.13
14	W11164066		Cover, Card Reader   (Replaces: W10137769)		Appelez-nous	-
15	WPW10133268		Cover, Display   (Replaces: W10133268)				$ 70.41
16	WPW10447152		Switch, Service Access   (Replaces: W10447152)				$ 41.20
17	W10145157		Retainer, Facia Cover		Appelez-nous	-
18	WPW10133264		Assembly, Lock Access Door   (Replaces: W10133264)				$ 139.02
19	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 23.02
20	3400408		Screw		Appelez-nous	-
21	W10160652		Bracket-switch		Appelez-nous	-
22	3400618		Screw				$ 64.70
23	W11101562		Collar   (Replaces: W10862446)		Appelez-nous	-
24	W10850065		Cover, Terminal Block		Appelez-nous	-
25	W10769481		Jumper, Coin Box		Appelez-nous	-
26	W11398779		Control Board   (Replaces: W10678217)				$ 577.53
27	W11416034		Kit-coin Box, Security (to Be Serviced As A Kit)   (Replaces: W10169579)				$ 126.00
28	W11244126		Card Reader Conversion Kit   (Replaces: W10135263)		Appelez-nous	-
29	WPW10239515		Harness, Card Reader   (Replaces: W10239515)				$ 147.79
30	W10163036		Bezel				$ 20.40
31	WPW10143462		Screw   (Replaces: W10143462)				$ 6.00
32	W10827406		Relay, Motor		Appelez-nous	-
33	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 100.99
34	WPW10140858		Key, Access Door   (Replaces: W10140858)			Immediately	$ 22.10
35	279393		Screw Kit, Terminal Block			Immediately	$ 47.37
36	W11165684		Cam, Locking   (Replaces: W10133266)				$ 9.11
37	W11117166		Standoff, Circuit Board   (Replaces: W10133514)		Appelez-nous	-
38	W10807493		Jumper, Lower To Collar		Appelez-nous	-
39	W11676450		Screw   (Replaces: 3400000)				$ 14.06
