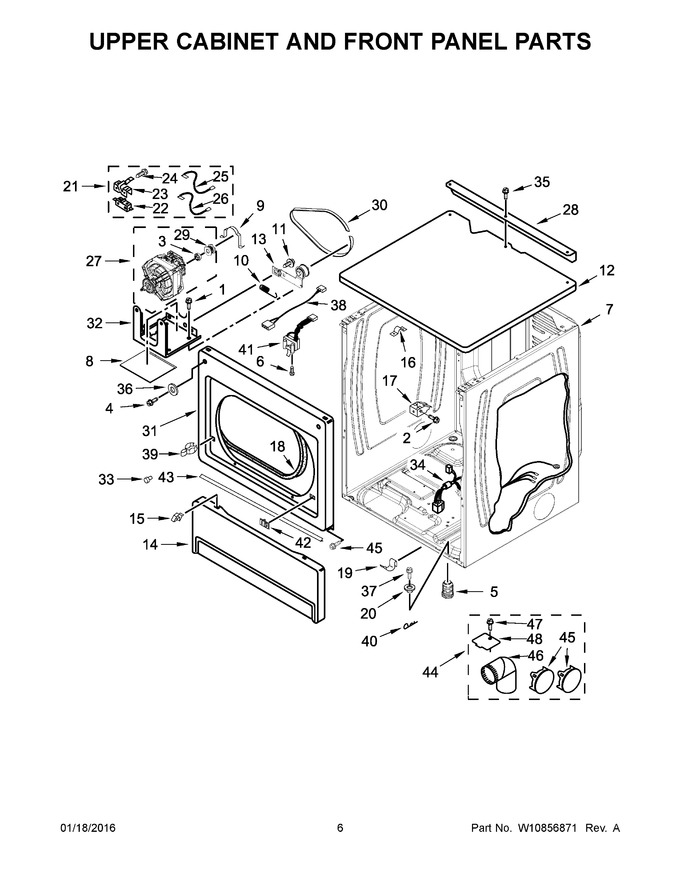

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw (Replaces: 3390663) |
|
Immediately | $ 7.85 | ||||
| 2 | 681615 | Screw (Replaces: 3391915) |
|
$ 13.88 | |||||
| 3 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 132.46 | ||||
| 4 | WP3400077 | Screw (Replaces: 3400077) |
|
$ 6.94 | |||||
| 5 | WP689172 | Foot, Dryer Plastic (Replaces: 689172) |
|
$ 81.44 | |||||
| 6 | WP3395530 | Screw (Replaces: 697773) |
|
$ 7.70 | |||||
| 7 | W11417441 | Cabinet (white) (Replaces: W10547697) |
|
$ 419.21 | |||||
| 8 | W11113654 | Motor, Sound Pad (Replaces: W10212660) |
|
$ 22.18 | |||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.83 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 24.57 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.02 | |||||
| 12 | 3389351 | Top (white) |
|
- | |||||
| 13 | WPW10344193 | Pulley-idler Assembly (Replaces: W10344193) |
|
Immediately | $ 83.77 | ||||
| 14 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 238.33 | |||||
| 15 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 16 | WP98997 | Clip (Replaces: 98997) |
|
$ 11.09 | |||||
| 17 | 3391846 | Clip, Front Panel |
|
$ 21.15 | |||||
| 18 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 19 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 7.75 | |||||
| 20 | 3389233 | Bushing |
|
- | |||||
| 21 | 279782 | Switch Assembly (Replaces: 8066134) |
|
Immediately | $ 54.44 | ||||
| 22 | 279782 | Switch - Belt (Replaces: 3394881) |
|
Immediately | $ 54.44 | ||||
| 23 | WP8066120 | Lever Switch (Replaces: 8066120) |
|
Immediately | $ 33.11 | ||||
| 24 | WP98129 | Screw (Replaces: 98129) |
|
$ 7.56 | |||||
| 25 | W10167612 | Wire, Belt Switch |
|
$ 12.78 | |||||
| 26 | 3398948 | Wire, Jumper (broken Belt Switch) |
|
$ 61.58 | |||||
| 27 | W10841144 | Motor (Replaces: W10396031) |
|
Immediately | $ 234.31 | ||||
| 28 | 3979115 | Bracket, Angle |
|
- | |||||
| 29 | WP8066184 | Pulley, Motor (Replaces: 3394341) |
|
Immediately | $ 51.02 | ||||
| 30 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 32.81 | ||||
| 31 | W11832207 | Panel, Front (Replaces: W10694688) |
|
$ 272.53 | |||||
| 32 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 133.59 | |||||
| 33 | 693152 | Bumper |
|
$ 10.96 | |||||
| 34 | W10807486 | Harness, Upper/lower |
|
- | |||||
| 35 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 36 | W11089212 | Washer (Replaces: 3392186) |
|
$ 9.67 | |||||
| 37 | 3400523 | Bolt, Security |
|
- | |||||
| 38 | 8283298 | Jumper, Door Switch |
|
$ 83.73 | |||||
| 39 | W11429589 | Strike, Door (Replaces: 3403431) |
|
Immediately | $ 20.99 | ||||
| 40 | W10117347 | Cotter Pin |
|
- | |||||
| 41 | WPW10237959 | Switch, Door (Replaces: 3406109) |
|
Immediately | $ 55.64 | ||||
| 42 | W10521429 | Cover, Strike (white) |
|
- | |||||
| 43 | W10576519 | Seal, Deflector |
|
- | |||||
| 44 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting), (white) (Replaces: 279818) |
|
Immediately | $ 76.65 | ||||
| 45 | W10470674 | Multivent Plug (white) (Replaces: 697750) |
|
Immediately | $ 76.65 | ||||
| 46 | WPW10416072 | Elbow (Replaces: 49026) |
|
$ 26.82 | |||||
| 47 | WP488729 | Screw (Replaces: 488729) |
|
Immediately | $ 7.79 | ||||
| 48 | WPW10354249 | Plate, Cover (Replaces: 3394331) |
|
$ 8.96 | |||||
| 15A | W10191265 | White |
|
$ 44.28 |
