01 - Cover Sheet
02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

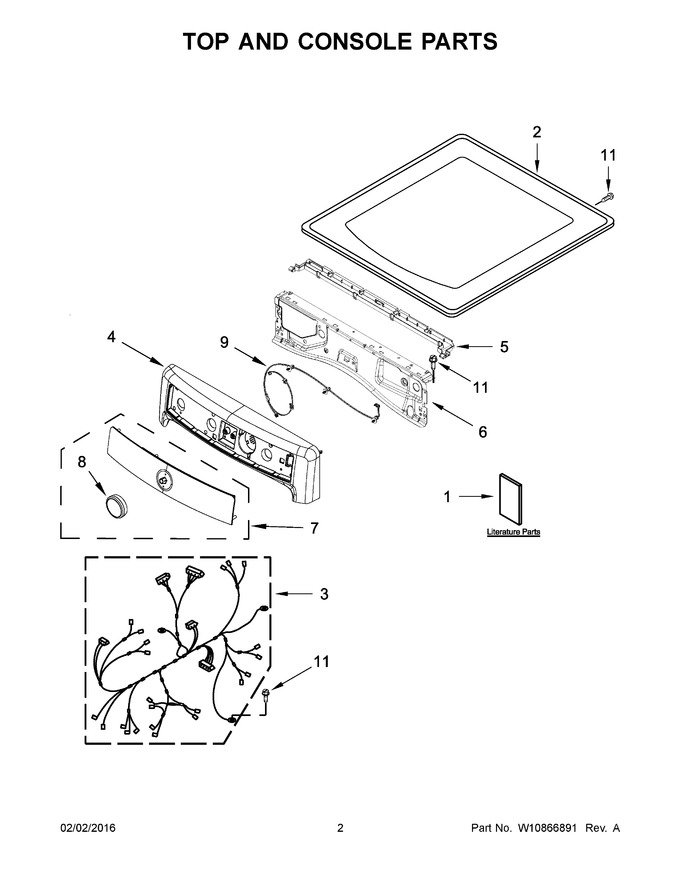

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10804690 | Use And Care Guide |
|
- | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 323.93 | |||||
| 3 | W10637533 | Harness, Main |
|
- | |||||
| 4 | WPW10391555 | Console Assembly (white) (Replaces: W10391555) |
|
$ 390.20 | |||||
| 5 | WPW10653575 | Water Channel (Replaces: W10636058) |
|
$ 90.94 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 81.21 | |||||
| 7 | W10800519 | Assembly, Iml (white) |
|
- | |||||
| 8 | W10853910 | Assembly, Control Knob (chrome) (Replaces: W10727011) |
|
$ 53.94 | |||||
| 9 | W10837344 | Cable, User Interface (Replaces: W10540653) |
|
$ 33.61 | |||||
| 10 | W10489172 | Screw |
|
$ 11.98 | |||||
| 11 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 1A | W10806850 | Tech Sheet |
|
- | |||||
| 1B | W10676165 | Installation Instructions |
|
- | |||||
| 1C | W10804377 | Wiring Diagram |
|
- | |||||
| 1D | W10804670 | Quick Start Guide |
|
- |
