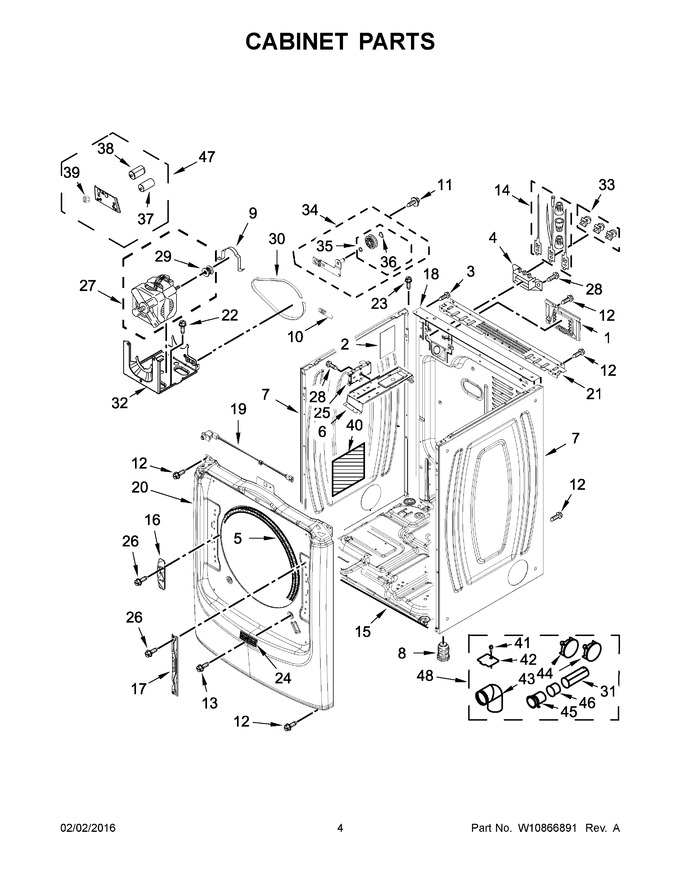

1	WPW10316167		Cover, Terminal Block   (Replaces: W10316167)				$ 99.09
2	W11409002		Pad, Foam   (Replaces: W10504381)				$ 22.63
3	W10850756		Screw   (Replaces: 8533974)				$ 7.76
4	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 23.02
5	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
6	W10259611		Bracket, Control				$ 127.30
7	W11233548		Panel, Side (white)   (Replaces: W10468495)				$ 248.89
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 25.68
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 24.57
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.02
12	WP489463		Screw   (Replaces: 489463)				$ 7.82
13	WP308685		Screw   (Replaces: 3357011)			Immediately	$ 7.87
14	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 100.99
15	W11215531		Base, Cabinet   (Replaces: 8565046)				$ 347.96
16	WPW10208250		Strike, Door   (Replaces: W10208250)				$ 41.77
17	W10315109		Bracket, Door Hinge		Appelez-nous	-
18	W10487430		Panel, Rear			Immediately	$ 340.11
19	W11427601		Door Switch, Snap In   (Replaces: W10688148)				$ 72.89
20	W11123144		Panel, Front (white)   (Replaces: W10651060)			Immediately	$ 200.47
21	WPW10208382		Bracket, Rear   (Replaces: W10208382)				$ 41.56
22	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.85
23	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
24	W10908007		Badge, Maytag   (Replaces: W10639171)				$ 60.95
25	W10849080		Board, Control   (Replaces: W10804446)			Immediately	$ 348.55
26	W11661566		Screw   (Replaces: W10288126)				$ 14.03
27	W10801127		Assembly, Motor   (Replaces: W10577393)				$ 369.46
28	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 7.19
29	WP8066184		Pulley, Motor   (Replaces: 8066184)			Immediately	$ 51.02
30	WPW10112954		Belt, Drive   (Replaces: W10112954)			Immediately	$ 100.30
31	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 88.80
32	W11481730		Bracket, Motor Mounting   (Replaces: W10242878)			Immediately	$ 87.83
33	279393		Screw Kit, Terminal Block			Immediately	$ 47.37
34	W10837240		Assembly, Idler   (Replaces: W10547287)			Immediately	$ 35.78
35	279640		Assembly, Pulley   (Replaces: W10468057)			Immediately	$ 32.51
36	WPW10512946		Washer, Tri Ring   (Replaces: W10512946)			Immediately	$ 8.80
37	W10442539		Capacitor, Motor Run				$ 85.60
38	W10701357		Capacitor, Motor Start				$ 135.04
39	W10759923		Nut   (Replaces: W10604214)				$ 7.64
40	W10123956		Panel, Dampening		Appelez-nous	-
41	WP488729		Screw   (Replaces: 488729)			Immediately	$ 7.79
42	WPW10354249		Plate, Cover   (Replaces: W10354249)				$ 8.96
43	WPW10416072		Elbow   (Replaces: W10416072)				$ 26.82
44	WPW10404617		Plug, Multivent   (Replaces: W10404617)				$ 71.98
45	W10587890		Pipe, Exhaust (medium)		Appelez-nous	-
46	WPW10331278		Pipe, Exhaust (short)   (Replaces: W10331278)				$ 78.95
47	W10565150		Bracket Assembly				$ 101.46
48	W10323246		Dryer Exhaust Kit (for Side & Bottom Venting), Kit, 4-way Vent			Immediately	$ 85.68
NI	49621		Foot, Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
