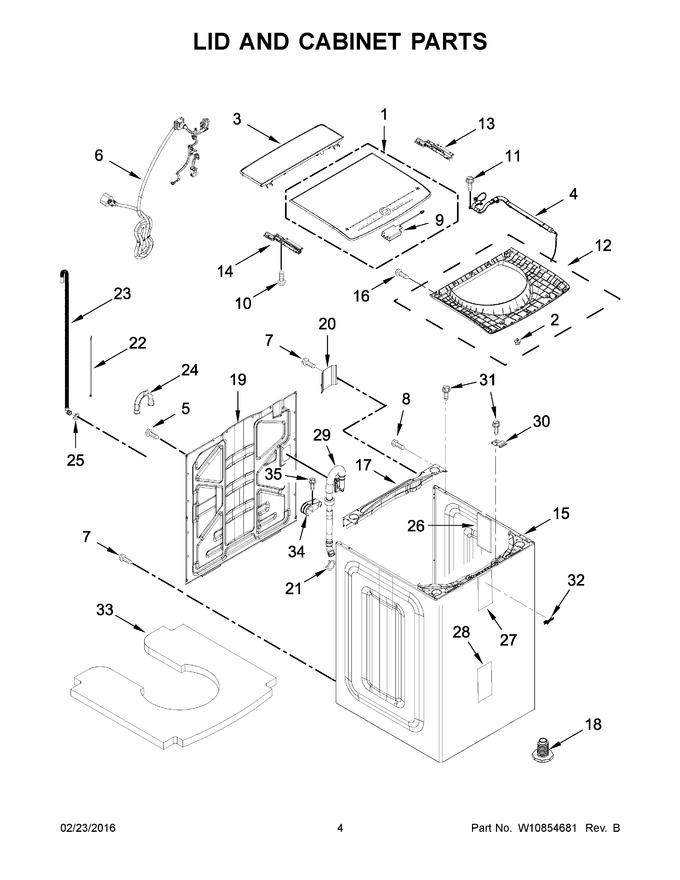

03 - Lid And Cabinet Parts


04 - Motor, Basket And Tub Parts


05 - Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10670723		Lid Assembly		Appelez-nous	-
2	W10742438		Bumper, Lid		Appelez-nous	-
3	W10684589		Top Cover Assembly, Rear Tray		Appelez-nous	-
4	W10479822		Harness, User Interface		Appelez-nous	-
5	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
6	W10719553		Power Cord		Appelez-nous	-
7	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
8	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
9	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 72.84
10	WP356418		Screw   (Replaces: 96435)				$ 8.33
11	W11230114		Screw   (Replaces: 8540513)				$ 12.55
12	W10710495		Frame, Lower Assembly		Appelez-nous	-
13	W10859054		Hinge, Lid (right)   (Replaces: W10551232)		Appelez-nous	-
14	W10859054		Hinge, Lid (left)   (Replaces: W10562984)		Appelez-nous	-
15	W10753693		Cabinet (white)		Appelez-nous	-
16	W10589828		Screw				$ 13.76
17	W10463933		Channel, Front Rear		Appelez-nous	-
18	W11204543		Foot Assembly, Leveling   (Replaces: W10715265)				$ 11.47
19	W10464765		Panel, Rear		Appelez-nous	-
20	W10676061		Cover, Harness				$ 33.09
21	WP285655		Clamp, Hose   (Replaces: W10142630)			Immediately	$ 7.93
22	WPW10339879		Tie, Cable   (Replaces: W10339879)				$ 7.47
23	W11244231		Hose, Outer Drain   (Replaces: W10769870)			Immediately	$ 28.86
24	WPW10280024		U-bend, Drain Hose   (Replaces: W10280024)				$ 75.16
25	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
26	W11197416		Absorber, Impact   (Replaces: W10688364)			Immediately	$ 21.04
27	WP8564458		Absorber, Impact   (Replaces: 8564458)			Immediately	$ 7.54
28	W11096159		Damper, Sound   (Replaces: W10414221)				$ 25.86
29	W11246418		Hose, Internal Drain   (Replaces: W10786890)				$ 51.99
30	WPW10248088		Lock, Top   (Replaces: W10248088)				$ 16.95
31	WP489128		Screw   (Replaces: W10142728)				$ 10.26
32	WPW10511975		Badge (white)   (Replaces: W10511975)				$ 72.76
33	W10825092		Absorber, Sound				$ 84.82
34	W10652932		Clip, Hose				$ 38.69
35	WPW10004910		Screw   (Replaces: W10004910)				$ 7.55
15A	W10763699		Cabinet (chrome Shadow)				$ 427.67
32A	WPW10511972		Badge (grey)   (Replaces: W10511972)				$ 71.60
