SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Control Parts


03 - Lid And Cabinet Parts

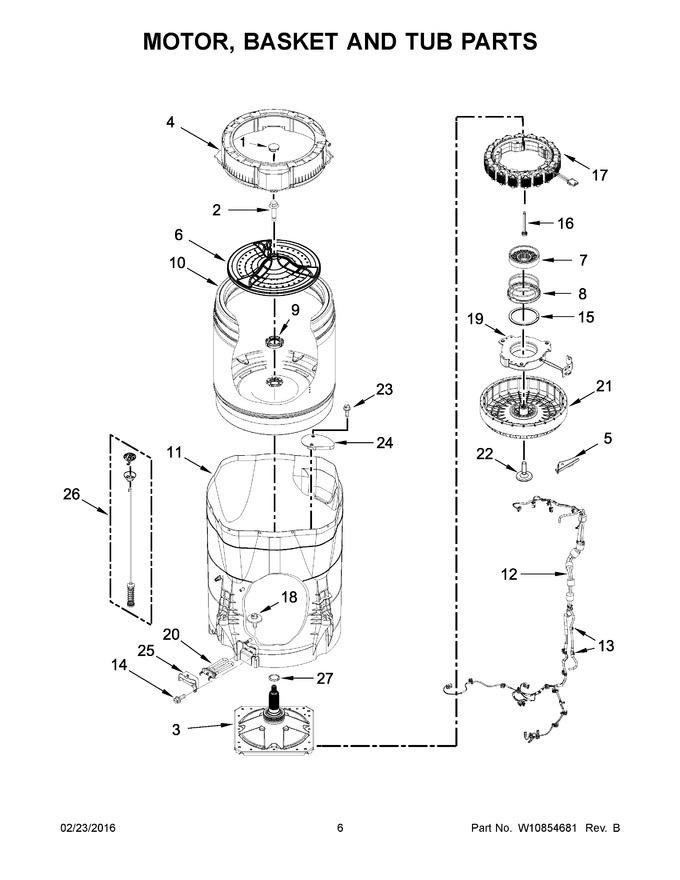

04 - Motor, Basket And Tub Parts


05 - Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11123149		Cap, Impeller   (Replaces: W10648586)				$ 51.25
2	W10752187		Screw   (Replaces: W10625252)			Immediately	$ 9.37
3	W11393684		Drive Assembly   (Replaces: W10006491)				$ 463.59
4	W10512171		Tub Ring				$ 189.44
5	W10802382		Shield, Motor Harness		Appelez-nous	-
6	W10902814		Impeller (washplate)   (Replaces: W10597581)			Immediately	$ 136.03
7	W10734521		Slider   (Replaces: W10447975)			Immediately	$ 47.46
8	W10734521		Assembly, Spring   (Replaces: W10006494)			Immediately	$ 47.46
9	W11665965		Nut, Lock   (Replaces: W10726440)				$ 95.29
10	W10743267		Basket Assembly				$ 481.50
11	W10704196		Tub				$ 339.15
12	W10479815		Harness, Lower				$ 242.33
13	W10005430		Clamp, Cable			Immediately	$ 9.53
14	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 8.80
15	W10734521		Ring, Snap   (Replaces: W10275082)			Immediately	$ 47.46
16	W11027980		Screw   (Replaces: W10644129)			Immediately	$ 8.12
17	W10754158		Stator, Motor   (Replaces: W10579778)			Immediately	$ 288.46
18	W10743982		Screw				$ 26.54
19	W10754448		Assembly, Clutch   (Replaces: W10447973)			Immediately	$ 168.82
20	W11041462		Heater, Tub   (Replaces: W10325894)				$ 84.89
21	W10754161		Rotor, Motor   (Replaces: W10447979)			Immediately	$ 232.99
22	W10752189		Screw   (Replaces: W10636382)			Immediately	$ 8.86
23	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 8.26
24	W10597575		Hood, Dual Pump				$ 35.14
25	WPW10297450		Cover, Tub Heater   (Replaces: W10297450)				$ 37.26
26	W11130360		Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension)   (Replaces: W10683562)				$ 214.71
27	W11553312		Washer, Thrust   (Replaces: W10726428)			Immediately	$ 17.43

    View Diagram in Separate Window       Print Part List
