View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts

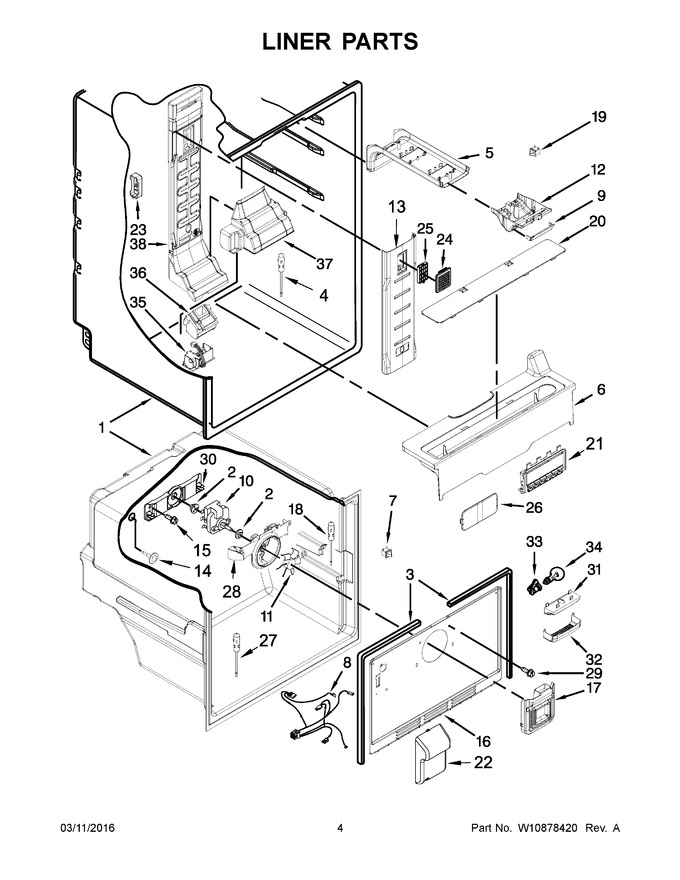

03 - Liner Parts
04 - Refrigerator Door Parts
05 - Freezer Door Parts
06 - Unit Parts
07 - Shelf Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 43.97 | ||||
| 3 | W10849448 | Gasket, Evaporator Cover (Replaces: W10468762) |
|
Immediately | $ 91.13 | ||||
| 4 | WPW10384183 | Thermistor, Refrigerator Compartment (Replaces: W10384183) |
|
Immediately | $ 112.83 | ||||
| 5 | W10469878 | Housing, Light |
|
Immediately | $ 116.22 | ||||
| 6 | W10798439 | Container, Water Reservoir |
|
$ 171.35 | |||||
| 7 | W11396033 | Switch, Light (Replaces: 12466105) |
|
Immediately | $ 37.30 | ||||
| 8 | WPW10487766 | Assembly, Freezer Wire (Replaces: W10487766) |
|
Immediately | $ 78.12 | ||||
| 9 | W10360550 | Cover, Control Housing |
|
$ 72.64 | |||||
| 10 | W11818487 | Motor, Fan (Replaces: W10464673) |
|
$ 113.70 | |||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 66.15 | ||||
| 12 | WPW10435634 | Control Housing (Replaces: W10435634) |
|
Immediately | $ 92.95 | ||||
| 13 | WPW10356895 | Tower, Multiflow Air (Replaces: W10356895) |
|
$ 153.80 | |||||
| 14 | WP941839 | Hole Plug (white) (Replaces: 941839) |
|
$ 7.65 | |||||
| 15 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.54 | |||||
| 16 | W10300900 | Cover, Evaporator |
|
$ 230.63 | |||||
| 17 | W11227949 | Tower, Freezer (Replaces: W10317182) |
|
$ 107.22 | |||||
| 18 | WPW10383615 | Thermistor, Freezer Evaporator (Replaces: W10383615) |
|
Immediately | $ 47.51 | ||||
| 19 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 37.23 | ||||
| 20 | W10413160 | Cover, Water Reservoir |
|
$ 107.75 | |||||
| 21 | W11082834 | Ui Assembly (Replaces: W10689397) |
|
$ 390.10 | |||||
| 22 | WPW10339203 | Cover, Water Tube (Replaces: W10339203) |
|
$ 7.19 | |||||
| 23 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 84.17 | ||||
| 24 | WPW10330850 | Grille, Air Filter Bottom (Replaces: W10330850) |
|
$ 35.77 | |||||
| 25 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 26 | W10336009 | Cup, Screw |
|
$ 73.71 | |||||
| 27 | W11724692 | Thermistor, Freezer (Replaces: W10438761) |
|
Immediately | $ 32.00 | ||||
| 28 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 30.92 | ||||
| 29 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 30 | 2254454 | Bracket, Evaporator Fan Rear |
|
Immediately | $ 71.85 | ||||
| 31 | WPW10313917 | Housing, Freezer Lighting (Replaces: W10313917) |
|
Immediately | $ 91.07 | ||||
| 32 | WPW10313918 | Lens, Light (Replaces: W10313918) |
|
Immediately | $ 90.80 | ||||
| 33 | W11661565 | Socket, Light (Replaces: W10440814) |
|
Immediately | $ 34.11 | ||||
| 34 | W11518235 | Bulb, Light (Replaces: W10809515) |
|
Immediately | $ 29.29 | ||||
| 35 | W11808478 | Damper, Electronic Control (Replaces: W10745484) |
|
Immediately | $ 132.68 | ||||
| 36 | W11133099 | Cover, Damper Housing (Replaces: W10474774) |
|
Immediately | $ 101.35 | ||||
| 37 | WPW10314204 | Housing, Damper (Replaces: W10314204) |
|
$ 97.20 | |||||
| 38 | W11508229 | Assembly, Multiflow (Replaces: W10448448) |
|
$ 66.86 |
