01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Refrigerator Door Parts
05 - Freezer Door Parts
06 - Unit Parts
07 - Shelf Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:

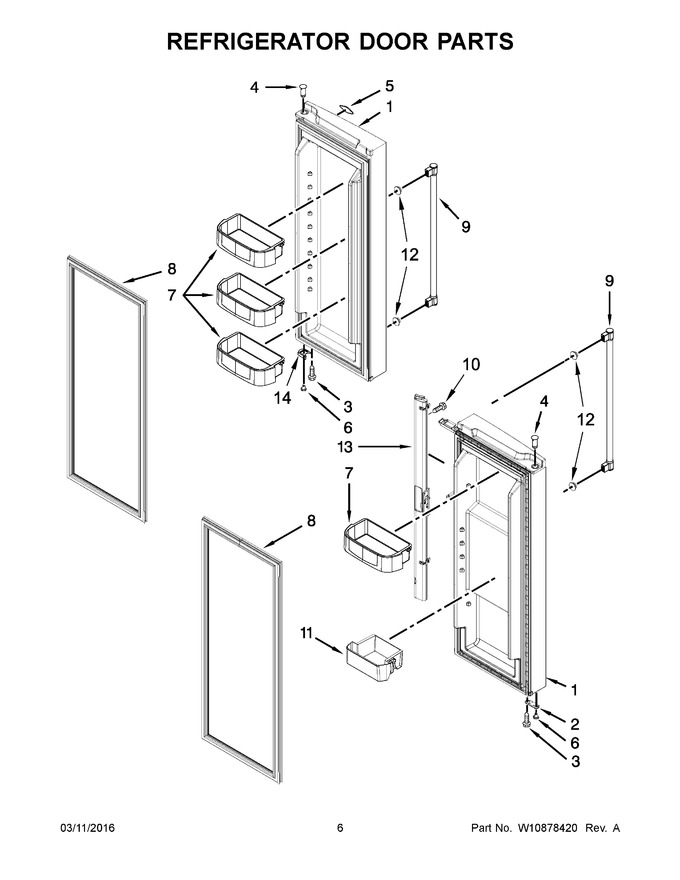

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10721544 | Door, Refrigerator (includes Illustration 8) (left Hand (white)) (Replaces: W10721544) |
|
$ 1,021.89 | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 4 | W11544568 | Thimble (white) (Replaces: W10366270) |
|
Immediately | $ 13.95 | ||||
| 5 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 42.36 | ||||
| 6 | WPW10470155 | Closure, Door (Replaces: W10470155) |
|
Immediately | $ 7.55 | ||||
| 7 | WPW10308869 | Bin, Medium (Replaces: W10331764) |
|
Immediately | $ 72.18 | ||||
| 8 | W10460612 | Gasket, Door (beige) (Replaces: W10353189) |
|
Immediately | $ 232.69 | ||||
| 9 | WPW10643725 | Assembly, Handle (stainless) (Replaces: W10643725) |
|
$ 313.17 | |||||
| 10 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 11 | WPW10372916 | Bin, Shallow (Replaces: W10372916) |
|
Immediately | $ 220.96 | ||||
| 12 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 13 | WPW10624451 | Assembly, Mullion (white) (Replaces: W10624451) |
|
Immediately | $ 128.93 | ||||
| 14 | WPW10397055 | Bracket, Door Stop (Replaces: W10397055) |
|
Immediately | $ 36.94 | ||||
| 13A | W11692845 | Assembly, Mullion (black) (Replaces: W10624448) |
|
$ 241.66 | |||||
| 13B | WPW10624450 | Assembly, Mullion (grey) (Replaces: W10624450) |
|
Immediately | $ 223.83 | ||||
| 1A | LW10721540 | Door, Refrigerator (includes Illustration 8) (right Hand (white)) (Replaces: W10721540) |
|
$ 1,017.04 | |||||
| 1B | LW10721546 | Door, Refrigerator (includes Illustration 8) (left Hand (black)) (Replaces: W10721546) |
|
$ 874.89 | |||||
| 1C | LW10721541 | Door, Refrigerator (includes Illustration 8) (right Hand (black)) (Replaces: W10721541) |
|
$ 874.89 | |||||
| 1D | LW10721548 | Door, Refrigerator (includes Illustration 8) (left Hand (stainless)) (Replaces: W10721548) |
|
Immediately | $ 1,229.74 | ||||
| 1E | LW10721542 | Door, Refrigerator (includes Illustration 8) (right Hand (stainless)) (Replaces: W10721542) |
|
$ 1,300.02 | |||||
| 4A | W11189115 | Thimble (black) (Replaces: W10334042) |
|
$ 12.71 | |||||
| 8A | W10460610 | Gasket, Door (black) (Replaces: W10413465) |
|
$ 225.77 | |||||
| 8B | WPW10460580 | Gasket, Door (grey) (Replaces: W10413468) |
|
Immediately | $ 221.51 |
