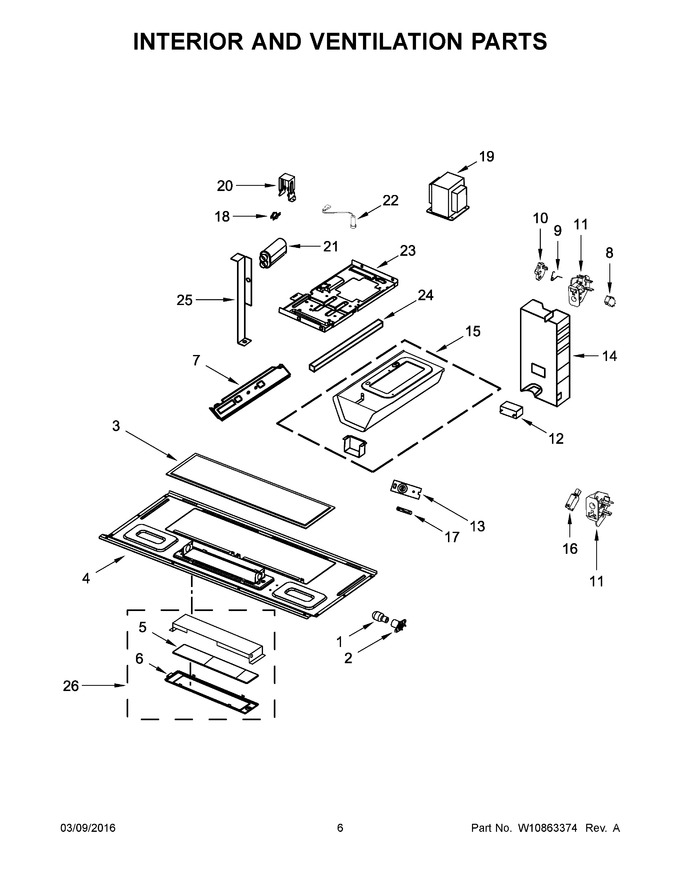

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8206232A		Lamp 40 Watt   (Replaces: 8206232)			Immediately	$ 7.71
2	W10210871		Holder, Lamp			Immediately	$ 6.39
3	W10208631A		Filter, Grease   (Replaces: W10208631)			Immediately	$ 32.59
4	W10245196		Plate, Bottom				$ 257.07
5	WPW10210875		Glass, Lamp   (Replaces: W10210875)				$ 350.94
6	W10210873		Holder, Glass				$ 5.75
7	W10315759		Support, Ntc				$ 105.07
8	W10269458		Microswitch V15t16-cc200/nc			Immediately	$ 40.11
9	W10156812		Spring, Interlock			Immediately	$ 12.14
10	W10562613		Plate, Cam   (Replaces: W10156811)			Immediately	$ 17.83
11	WP8206419		Support, Interlock (top)   (Replaces: 8206419)			Immediately	$ 22.37
12	W11405832		Capacitor, Hood Motor   (Replaces: W10605896)				$ 28.60
13	W10163422		Thermistor				$ 179.70
14	W11302941		Air Guide, Lower   (Replaces: W10771884)				$ 86.79
15	W10313269		Chassis Assembly		Appelez-nous	-
16	W10269460		Microswitch V15t16-cp200/no			Immediately	$ 45.95
17	W11707984		Fuse   (Replaces: W10138793)			Immediately	$ 45.85
18	W10269232		Thermostat, Cavity				$ 74.28
19	W10836753		Transformer, High Voltage   (Replaces: W10754523)			Immediately	$ 236.06
20	W10532063		Bracket, Capacitor				$ 29.69
21	8206562		Capacitor, High Voltage			Immediately	$ 120.92
22	W11256462		Diode, High Voltage   (Replaces: W10492276)			Immediately	$ 34.86
23	W10269456		Chassis				$ 82.02
24	W11523261		Cushion, Ntc   (Replaces: W10313276)		Appelez-nous	-
25	W10313275		Bracket, Top Cavity				$ 35.62
26	W10240330		Assembly, Lamp Glass And Holder				$ 7.55
11A	WPW10156813		Support, Interlock (bottom)   (Replaces: W10156813)			Immediately	$ 8.07
