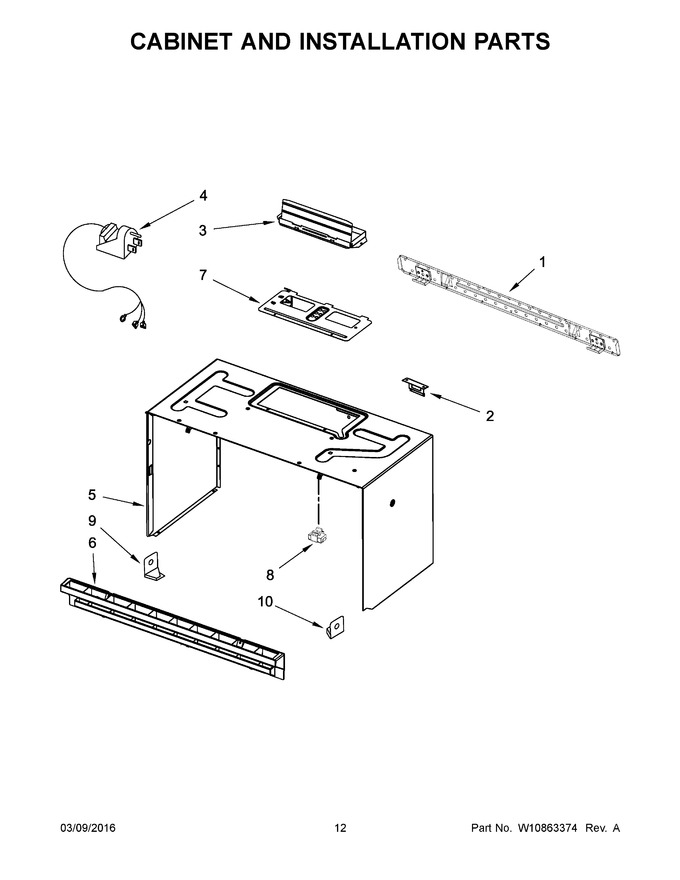

01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting (Replaces: W10440498) |
|
Immediately | $ 24.69 | ||||
| 2 | 8206385 | Support, Wire Clip |
|
$ 37.20 | |||||
| 3 | W10843943 | Damper (Replaces: W10748710) |
|
Immediately | $ 73.04 | ||||
| 4 | W10708076 | Cord, Power |
|
$ 21.56 | |||||
| 5 | W10883282 | Case, Outer (white) (Replaces: W10838183) |
|
$ 272.24 | |||||
| 6 | W10315365 | Grille, Vent (white) |
|
$ 58.54 | |||||
| 7 | W10210832 | Cover, Hood Fan Motor |
|
$ 6.68 | |||||
| 8 | W10596040 | Assembly, Mounting Nut |
|
Immediately | $ 8.30 | ||||
| 9 | W11026306 | Vent Holder, Left (stainless) (Replaces: W10703284) |
|
Immediately | $ 7.55 | ||||
| 10 | W10703282 | Vent Holder, Right (stainless) |
|
$ 11.00 | |||||
| NI | W10821385 | Miscellaneous Parts, Hardware, Installation |
|
Immediately | $ 103.72 | ||||
| NI | W10190020 | Miscellaneous Parts, Template, Upper |
|
$ 56.21 | |||||
| NI | W10874098 | Miscellaneous Parts, Harness, Main |
|
- | |||||
| NI | W10539841 | Miscellaneous Parts, Harness, Hood Lamp And Turntable Motor |
|
$ 20.98 | |||||
| NI | W10539842 | Miscellaneous Parts, Harness, Magnetron To High Voltage Transformer |
|
$ 16.70 | |||||
| NI | W10539840 | Miscellaneous Parts, Harness, Pcba Ground Wire |
|
$ 25.08 |
