| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

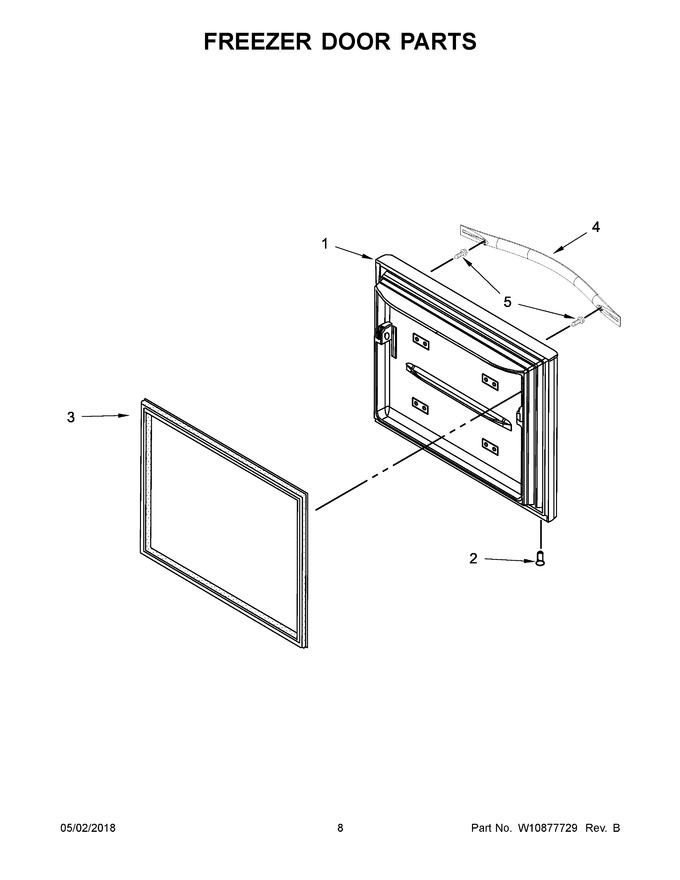

| 1 | W10433606 | Freezer Door (includes Illus. 2 & 3) (white) |
|
- | |||||
| 2 | W11544568 | Thimble (Replaces: W10366270) |
|
Immediately | $ 13.95 | ||||
| 3 | W10460611 | Gasket (beige) (Replaces: W10465758) |
|
Immediately | $ 304.19 | ||||
| 4 | W10865840 | Handle Assembly (white) (Replaces: W10686485) |
|
$ 188.03 | |||||
| 5 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 1A | W10433607 | Freezer Door (includes Illus. 2 & 3) (black) |
|
- | |||||
| 1B | LW10433608 | Freezer Door (includes Illus. 2 & 3) (stainless) (Replaces: W10433608) |
|
$ 710.98 | |||||
| 3A | W11625017 | Gasket (black) (Replaces: W10465761) |
|
$ 339.69 | |||||
| 3B | W10836785 | Gasket (grey) (Replaces: W10465762) |
|
$ 278.29 | |||||
| 4A | W10686483 | Handle Assembly (black) |
|
$ 239.86 | |||||
| 4B | W10830683 | Handle Assembly (stainless) (Replaces: W10686487) |
|
$ 233.53 |
