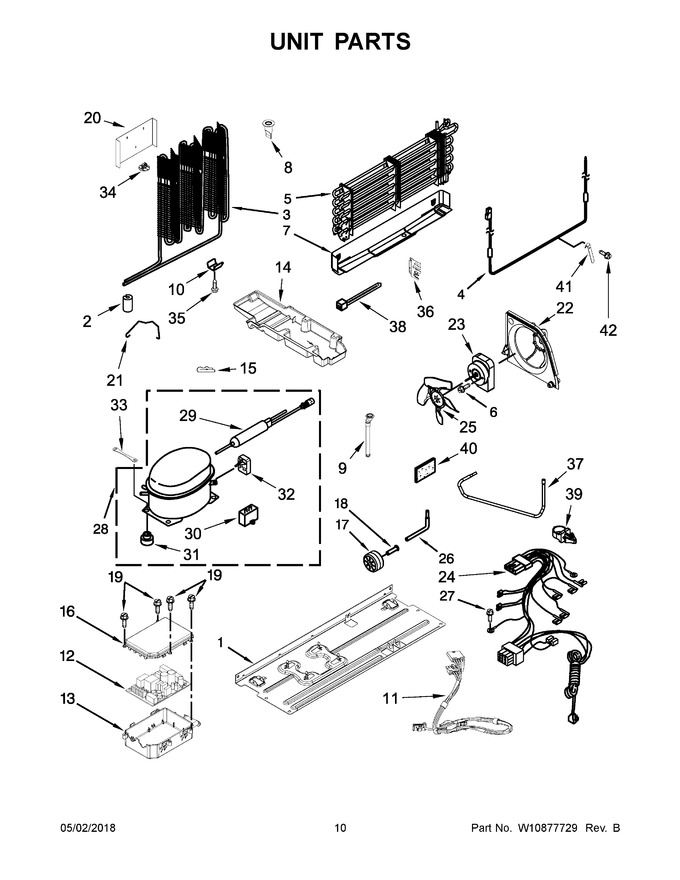

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10300116 | Baseplate |
|
$ 156.48 | |||||
| 2 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 7.70 | |||||
| 3 | WPW10342567 | Condenser (Replaces: W10342567) |
|
$ 264.95 | |||||
| 4 | WPW10436849 | Heater, Defrost (Replaces: W10436849) |
|
Immediately | $ 134.14 | ||||
| 5 | WPW10321158 | Assembly, Evaporator (Replaces: W10321158) |
|
Immediately | $ 293.66 | ||||
| 6 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 7 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 96.51 | |||||
| 8 | W11190084 | Valve, Drain (Replaces: W10519112) |
|
Immediately | $ 62.44 | ||||
| 9 | W11190084 | Tube, Drain (Replaces: W10314199) |
|
Immediately | $ 62.44 | ||||
| 10 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 18.46 | |||||
| 11 | WPW10424230 | Assembly, Low Voltage Wire (Replaces: W10424230) |
|
Immediately | $ 117.74 | ||||
| 12 | W11035836 | Control, Electronic (Replaces: W10892333) |
|
Immediately | $ 261.12 | ||||
| 13 | 2323186 | Box, Control |
|
$ 102.36 | |||||
| 14 | W10890667 | Tray, Drain (Replaces: W10802027) |
|
$ 144.71 | |||||
| 15 | W11501419 | Clip, Wiring (Replaces: 1114718) |
|
Immediately | $ 11.52 | ||||
| 16 | W10313215 | Cover, Electronic Control |
|
$ 74.28 | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 32.06 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 18.21 | ||||
| 19 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 11.06 | ||||
| 20 | W10349514 | Cover, Condenser Bottom |
|
$ 78.48 | |||||
| 21 | W11661170 | Strap, Bale (Replaces: W10174384) |
|
Immediately | $ 11.30 | ||||
| 22 | WP2315541 | Bracket, Condenser Fan (Replaces: 2315541) |
|
Immediately | $ 83.80 | ||||
| 23 | WP2188874 | Motor, Condenser (Replaces: W10530280) |
|
Immediately | $ 113.96 | ||||
| 24 | W10637509 | Assembly, Unit Wire |
|
$ 230.03 | |||||
| 25 | W11193484 | Blade, Fan (Replaces: W10817071) |
|
Immediately | $ 96.66 | ||||
| 26 | W11676464 | Tube, Process (Replaces: VS20001) |
|
$ 103.44 | |||||
| 27 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.88 | |||||
| 28 | W10233960 | Compressor (Replaces: W10445423) |
|
Immediately | $ 513.66 | ||||
| 29 | W10843121 | Drier (Replaces: W10669573) |
|
Immediately | $ 52.57 | ||||
| 30 | WPW10662129 | Capacitor (Replaces: W10590083) |
|
Immediately | $ 58.86 | ||||
| 31 | WPW10169124 | Grommet, Compressor (Replaces: 10835903SP) |
|
Immediately | $ 7.19 | ||||
| 32 | WPW10448874 | Device, Start (Replaces: W10448874) |
|
Immediately | $ 136.08 | ||||
| 33 | W10236396 | Strap, Compressor |
|
Immediately | $ 19.82 | ||||
| 34 | W10815861 | Clip, Bottom Cover |
|
$ 15.05 | |||||
| 35 | W11544659 | Screw (Replaces: 8281232) |
|
$ 13.67 | |||||
| 36 | W10314197 | Bracket, Evaporator |
|
$ 22.32 | |||||
| 37 | W10510988 | Tube, Suction |
|
$ 61.30 | |||||
| 38 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.90 | |||||
| 39 | 2219077 | Clip, Harness |
|
$ 61.18 | |||||
| 40 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 14.07 | ||||
| 41 | W11807361 | Heat Probe (Replaces: 2258429) |
|
$ 19.16 | |||||
| 42 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| NI | N/P | Refrigerant Charge 4.25 Oz (r-134a) |
|
- | |||||
| NI | 876764 | Valve, Access (3/16") |
|
Immediately | $ 91.35 | ||||
| NI | 978030 | Valve, Access (3/4") |
|
$ 130.71 | |||||
| NI | 978029 | Valve, Access (5/8") |
|
$ 93.85 | |||||
| NI | SF5538 | Valve, Access (3/8") (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978026 | Valve, Access (5/16") |
|
Immediately | $ 128.09 | ||||
| NI | WP978025 | Valve, Access (1/4") (Replaces: 978025) |
|
Immediately | $ 105.25 |
