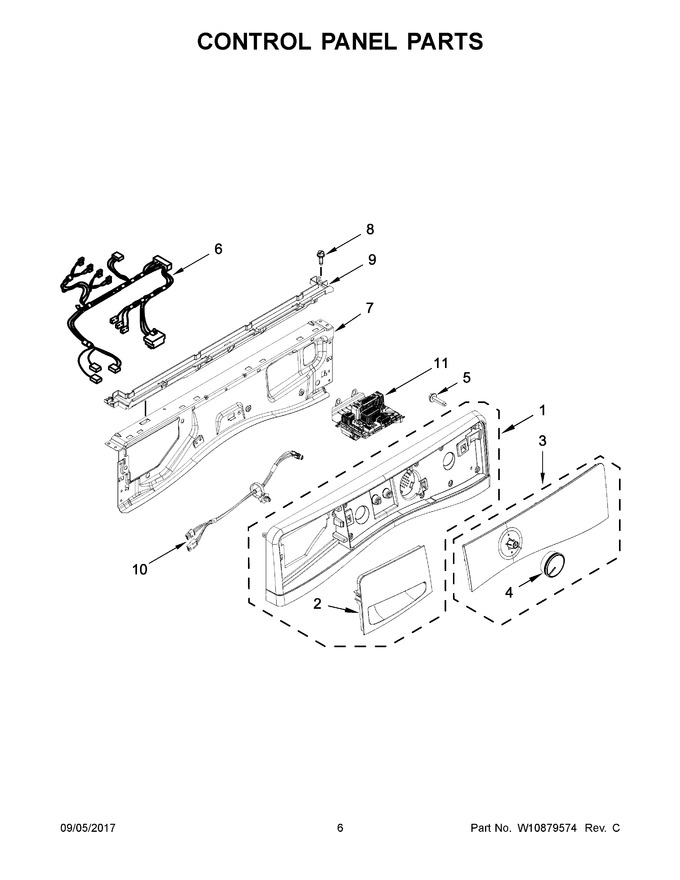

01 - Cover Sheet


02 - Top And Cabinet Parts


03 - Door Parts


04 - Control Panel Parts


05 - Dispenser Parts


06 - Tub And Basket Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10889171		Assembly, Console (white)   (Replaces: W10774354)		Appelez-nous	-
2	W10774320		Handle, Drawer (white)				$ 110.81
3	WPW10750477		Assembly, Iml (white)   (Replaces: W10750477)				$ 706.82
4	W10875909		Assembly, Timer Knob (white)   (Replaces: W10631126)			Immediately	$ 52.99
5	W10589828		Screw				$ 14.56
6	W10685627		Harness, Main (upper)				$ 147.15
7	W10208197		Bracket, Console				$ 166.23
8	WP489464		Screw   (Replaces: W10142290)			Immediately	$ 7.83
9	W11172160		Channel, Water   (Replaces: W10796900)				$ 67.86
10	WPW10442440		Harness, Ui   (Replaces: W10442440)				$ 27.18
11	W10885577		Control Unit, Appliance		Appelez-nous	-
1A	W10888105		Assembly, Console (chrome Shadow)   (Replaces: W10774358)				$ 384.20
2A	W10774323		Handle, Drawer (chrome Shadow)				$ 160.17
3A	WPW10750478		Assembly, Iml (chrome Shadow)   (Replaces: W10750478)				$ 731.56
4A	WPW10631127		Assembly, Timer Knob (grey)   (Replaces: W10631127)				$ 39.95
