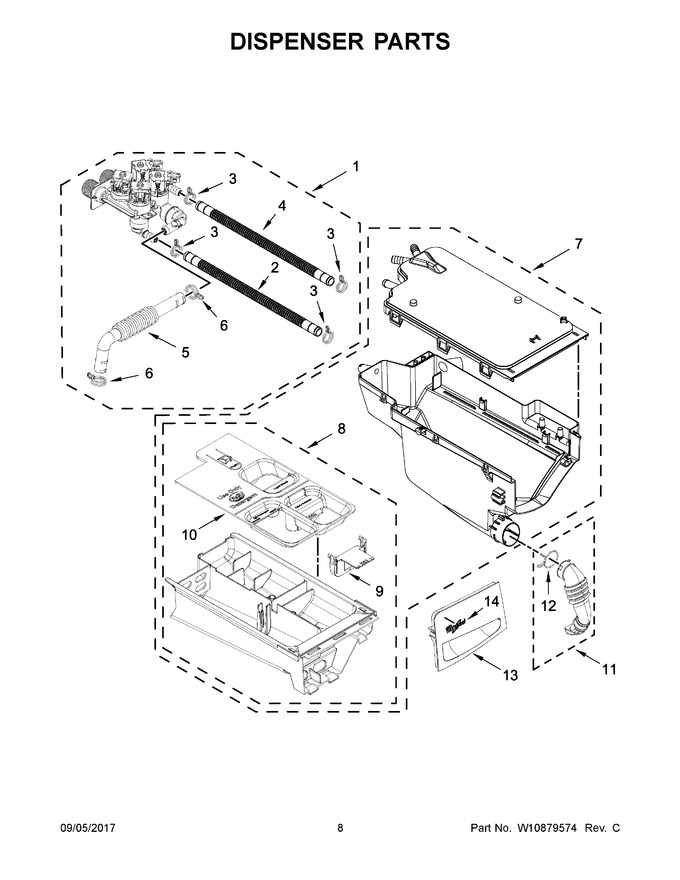

05 - Dispenser Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10435242 | Valve, Inlet Assembly (Replaces: W10435242) |
|
Immediately | $ 153.40 | ||||
| 2 | WPW10577770 | Hose, Grey (Replaces: W10577770) |
|
$ 30.09 | |||||
| 3 | WP596669 | Clamp, Hose (Replaces: W10096851) |
|
Immediately | $ 8.40 | ||||
| 4 | WPW10577787 | Hose, Black (Replaces: W10577787) |
|
$ 29.66 | |||||
| 5 | W10435238 | Hose, Steam |
|
$ 79.75 | |||||
| 6 | WP596669 | Clamp, Hose (Replaces: W10096852) |
|
Immediately | $ 8.40 | ||||
| 7 | W10575334 | Housing, Dispenser Assembly (Replaces: W10853531) |
|
$ 222.25 | |||||
| 8 | WPW10365885 | Drawer, Detergent (complete) (Replaces: W10365885) |
|
$ 115.17 | |||||
| 9 | W11084830 | Separator, With Selection Slider (Replaces: W10411442) |
|
$ 171.68 | |||||
| 10 | WPW10365887 | Siphon, Bleach/softener (Replaces: W10365887) |
|
Immediately | $ 93.85 | ||||
| 11 | WPW10239966 | Hose, Dispenser To Bellow (Replaces: W10239966) |
|
$ 82.95 | |||||
| 12 | W10239910 | Clamp, Hose |
|
Immediately | $ 59.43 | ||||
| 13 | W10774320 | Handle, Drawer (white) |
|
$ 110.81 | |||||
| 14 | W10510981 | Badge (white) |
|
- | |||||
| 13A | W10774323 | Handle, Drawer (chrome Shadow) |
|
$ 160.17 | |||||
| 14A | WPW10393264 | Badge (grey) (Replaces: W10393264) |
|
$ 64.51 |
