SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Unit Parts


12 - Ice Maker Parts


13 - Optional Parts (not Included)

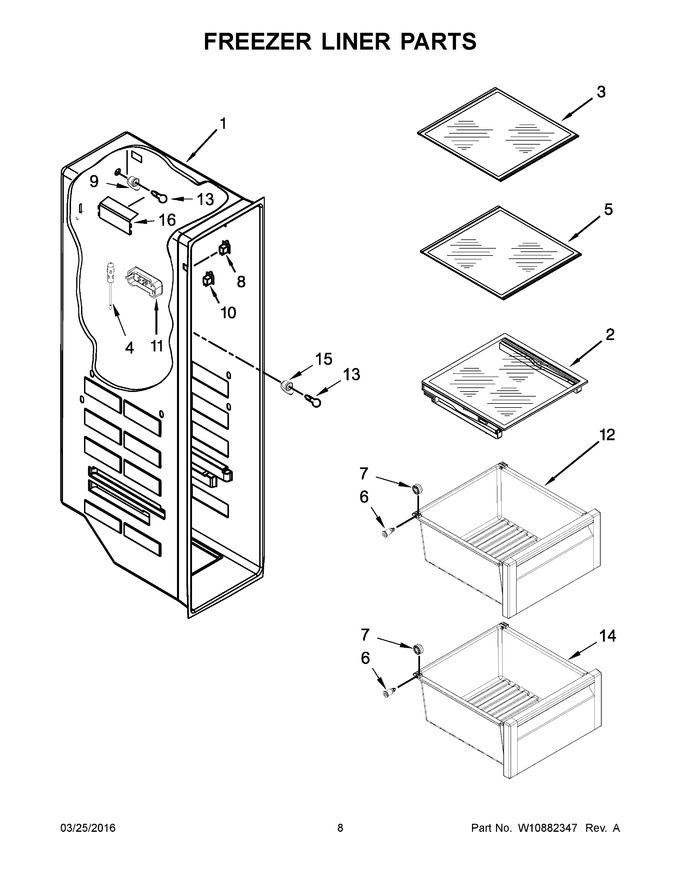

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	WPW10463654		Cover Assembly   (Replaces: W10463654)				$ 343.73
3	WPW10463643		Shelf, Glass Upper   (Replaces: W10463643)				$ 185.60
4	W11724692		Thermistor   (Replaces: W10280386)			Immediately	$ 33.60
5	WPW10463645		Shelf, Glass Lower   (Replaces: W10463645)				$ 239.07
6	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 36.54
7	W11164152		Roller   (Replaces: W10278139)			Immediately	$ 15.74
8	W11396033		Switch, Rocker Arm   (Replaces: W10656771)			Immediately	$ 37.30
9	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
10	W11123943		Switch, Rocker Arm   (Replaces: W10656772)				$ 36.66
11	WPW10425252		Cover, Thermistor   (Replaces: W10425252)			Immediately	$ 88.38
12	WPW10256827		Bin, Freezer   (Replaces: W10643347)				$ 159.42
13	W11216993		Lamp, Led   (Replaces: W10820003)			Immediately	$ 43.24
14	W10643348		Bin, Freezer		Appelez-nous	-
15	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 106.16
16	WPW10269101		Lens   (Replaces: W10269101)				$ 107.45

    View Diagram in Separate Window       Print Part List
