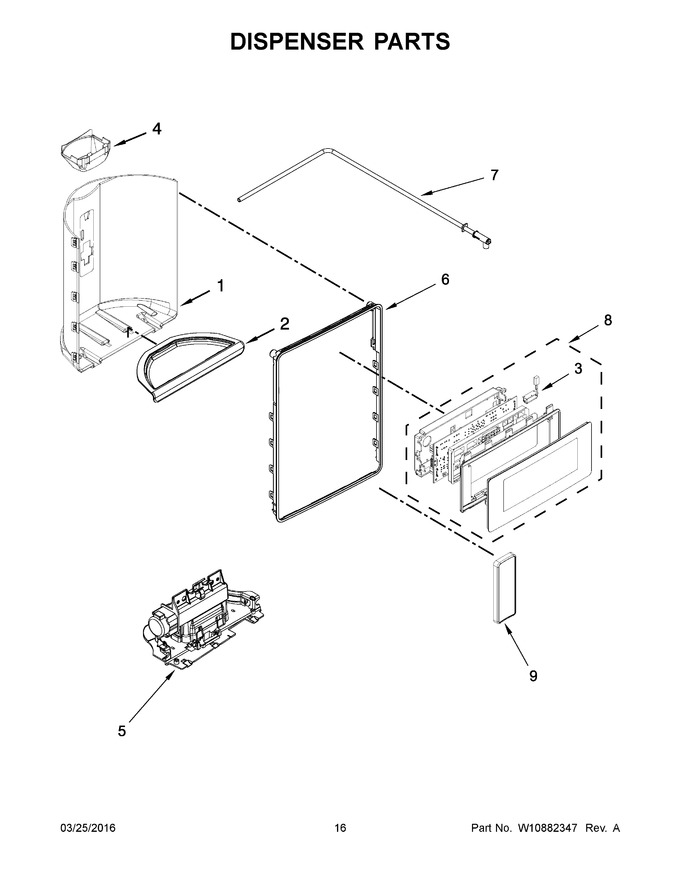

09 - Dispenser Parts


10 - Air Flow Parts


11 - Unit Parts


12 - Ice Maker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10520867		Housing, Dispenser (white)				$ 92.40
2	W10322872		Grate, Drip Tray (white)		Appelez-nous	-
3	W11290115		Assembly, Led   (Replaces: W10470750)				$ 84.45
4	WPW10435760		Guide, Ice   (Replaces: W10435760)				$ 23.94
5	WPW10577864		Assembly, Seperator   (Replaces: W10577864)			Immediately	$ 157.84
6	W10587907		Trim Ring (white)				$ 29.12
7	W11566468		Tube, Water (with Spigot)   (Replaces: W10294737)			Immediately	$ 58.56
8	W10889441		Electronic Control Assy (silver)   (Replaces: W10814042)		Appelez-nous	-
9	W10348739		Pad, Ice & Water (silver)		Appelez-nous	-
1A	W10520868		Housing, Dispenser (black)		Appelez-nous	-
1B	W10520869		Housing, Dispenser (grey)				$ 121.46
2A	WPW10322873		Grate, Drip Tray (black)   (Replaces: W10322873)				$ 58.53
2B	W10410105		Grate, Drip Tray (grey)				$ 104.16
6A	W10587908		Trim Ring (black)				$ 47.22
6B	W10587909		Trim Ring (grey)				$ 91.07
8A	W10889444		Electronic Control Assy (black)   (Replaces: W10823634)		Appelez-nous	-
9A	W10348739		Pad, Ice & Water (black)   (Replaces: W10410098)		Appelez-nous	-
9B	W10429205		Pad, Ice & Water (grey)		Appelez-nous	-
