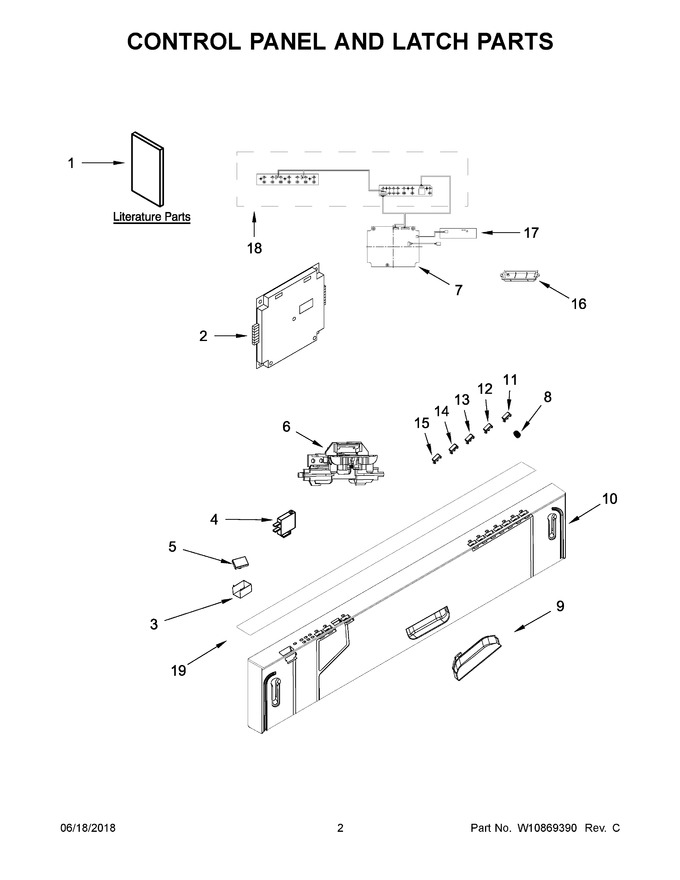

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10518038		Installation Instructions		Appelez-nous	-
2	W10883767		Cover, Main Control		Appelez-nous	-
3	W10717666		Button, Protector		Appelez-nous	-
4	W10859566		Microswitch   (Replaces: W10567585)				$ 29.97
5	W10883766		Button, Start/pause				$ 17.74
6	W10717668		Bolt, Latch				$ 68.30
7	W10883769		Control, Electronic		Appelez-nous	-
8	W10717657		Spring, Button				$ 22.69
9	W10717652		Handle, Pocket				$ 24.78
10	W10891561		Console (black)   (Replaces: W10883759)				$ 288.93
11	W10883760		Button, Cycle				$ 17.74
12	W10883761		Button, Heated Dry		Appelez-nous	-
13	W10883762		Button, High Temp		Appelez-nous	-
14	W10883763		Button, Delay		Appelez-nous	-
15	W10883765		Button, Lock		Appelez-nous	-
16	W10883770		Cover, Small Pcb		Appelez-nous	-
17	W10883771		Sensor, Pcb		Appelez-nous	-
18	W10891573		Pcb   (Replaces: W10883772)				$ 283.45
19	W11279743		Cover Sticker, Control Panel		Appelez-nous	-
1A	W10837343		Use & Care Guide (english/french)		Appelez-nous	-
1B	W10838357		Use & Care Guide (spanish)		Appelez-nous	-
