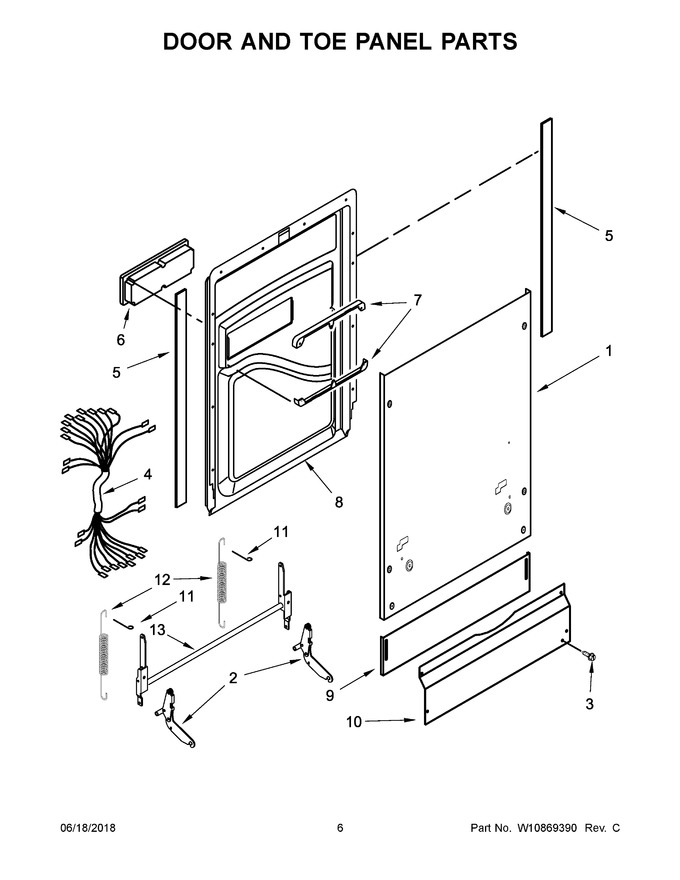

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10891560		Panel, Door   (Replaces: W10883758)				$ 262.90
2	W10717647		Hinge, Door (left Hand)				$ 51.61
3	W10517912		Screw (black)				$ 7.54
4	W10717644		Wiring Harness		Appelez-nous	-
5	W10868370		Guard, Inner Door (black)		Appelez-nous	-
6	W10717646		Dispenser				$ 205.61
7	W10567606		Bracket, Dispenser		Appelez-nous	-
8	W10717532		Door, Inner			Immediately	$ 344.46
9	W10567571		Panel, Toe (black)		Appelez-nous	-
10	W10567569		Panel, Access (black)		Appelez-nous	-
11	W10567596		Pin, Door Spring				$ 15.25
12	W10717649		Spring, Door				$ 31.46
13	WPW10567602		Bracket, Hinge   (Replaces: W10567602)				$ 96.05
2A	W10717648		Hinge, Door (right Hand)				$ 51.61
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11084038		Installation Hardware, Custom Panel   (Replaces: W11082803)				$ 19.10

    View Diagram in Separate Window       Print Part List
